customized new FOTON day old birds transported vehicle for sale, factory sale good price baby chick van truck for sale
customized new FOTON day old birds transported vehicle for sale, factory sale good price baby chick van truck for sale
The specification of FOTON 4.08m length day old chick box van body as below
1, high quality FRP(Fiber Glass-Reinforced Plastics) for the interior and exterior layer of the insulation body van box; and the middle insulation material with 80mm thickness high-density PU Foam.
2, the door locks and door frame with stainless steel material; the covered edge with aluminum alloy material; the truck floor with anti-slip diamond aluminum plate.
3,4 sets of blind windows with sliding doors for the left and right van sides
4,4 sets of electronic ventilator fans for the rear plate and 2 sets of electronic ventilator fans for the front plate.
5, Top mounted sky window* 2 sets
6, two line of air duct installed on the floor air flow
7, Cold air duct installed on the double sides of the van body
8, China made high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10 degree, adjusted at the driver cab).
If you're interested in our day old chick transported truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

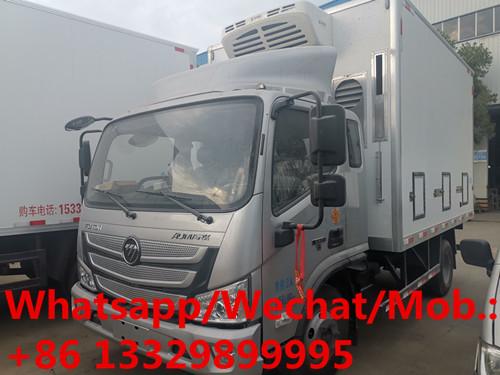

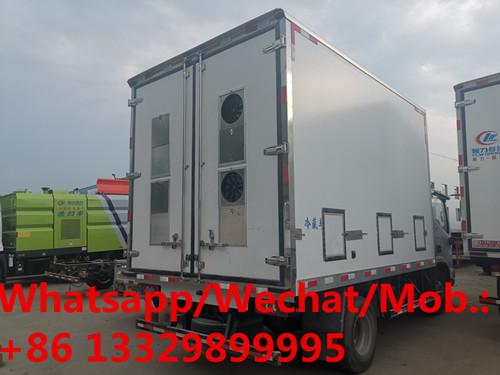

More pictures of FOTON day old chick transported truck manufactured by Chengli Special Automobile Co., Ltd. as below.
the specification of FOTON 110hp Euro 5 engine diesel 4.08m length day old chick transported truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Product name | FOTON 4*2 LHD day old chick transported truck | ||
| Overall dimension(L*W*H)(mm) | 5995×2310×3250 | Chick van box dimension(L*W*H)mm | 4085*2100*2100 (mm). |
| Drive type | 4*2 LHD | Total mass | 4495 |
| Gearbox | 5 speed transmission, manual | Tyre specification | 7.00R16 rail tyres *6+1 |
| Power steering | Yes | Exhaust braking | Yes |
| oil-cut braking | Yes | Driver cab | Foton aoling 1880mm driver cab |
| Engine | 4J28TC5 | Emission standard | Euro Ⅴ |
| Rater power | 81KW/110hp | Displacement (ml) | 2771 |
Main technical parameters of day old chick van body
| Performance and consumption | |||
| Heating system | Watering system | Without, client choose to install | |
| Cooling system | One refrigerated reefer | China made high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab) | |
| Ventilation system | Air duct installed on the floor for hot air flow | Without, client choose to install | |
| Cold air duct installed on the double sides of the van body | Two lines as the pictures show | ||
| Blind windows | 3 sets of blind windows with smaller doors for the left and right van sides (as the pictures show), Blind Windows: 3*2=6 | ||
| electronic ventilator fans | 1, 4 sets of electronic ventilator fans for the rear plate door; 2 sets of electronic ventilator fans for front plate Electronic fans: 4+2=6 | ||
| Sky-window |
Top mounted sky windows 2 sets, Sky-window: 2 |
||
| Dimension | |||
| Chick van box body | Length | 4150mm | |
| Width | 1750mm | ||
| Height | 1750m | ||
| Refrigerated van box | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices; Aluminum-patterned baseplate; |
||
Day old chciks transported truck is also called baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc. It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost. The advantages of the day old ducks truck are rainproof, dustproof, theft-proof, environmental protection, high efficiency, ventilating, insulation, large loading capacity, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of van truck in China. With many years’ development, Chengli Special Automobile Co., Ltd. could supply refrigerated truck, insualtion body van box, cargo van truck, baby chick transported truck, etc. And our CLW brand van truck have been exported to many countries all over the world. More information, please feel free to contact with Ms. Anita.
