Factory sale dongfeng brand mini diesel 3.5cbm garbage compactor turck, wholesale price compacted garbage truck for sale
Garbage compactor truck ,also called compactor garbage truck , garbage truck for sale , trash compactor , compression garbage truck , refuse truck , garbage collection vehicle, waste truck container garbage truck, compact garbage trucks, waste compactor trucks, compactor garbage truck for sale etc
Garbage compactor truck capacity from 3 cbm to 18cbm all available .
Chengli brand Garbage compactor truck advantage as below.
1 Dual operation both at the rear of compactor garbage truck and inside cabin , easy control
2 Famous brand hydraulic pump to drive hydraulic valve to keep garbage compactor truck safety
3 Cheap price , one year warranty
4 Garbage bin lifting system could design as customer’s requirement .
5 Lock system is operated by machinery hydraulic system can reduce second pollution mostly.
If you're interested in our garbage compactor truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

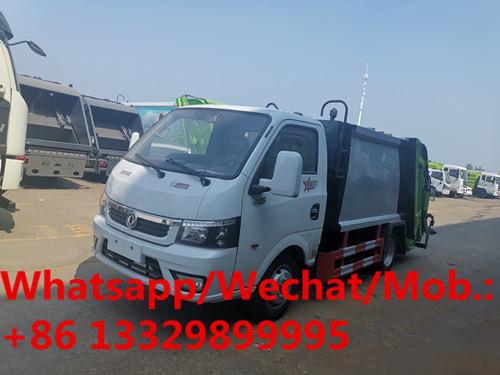

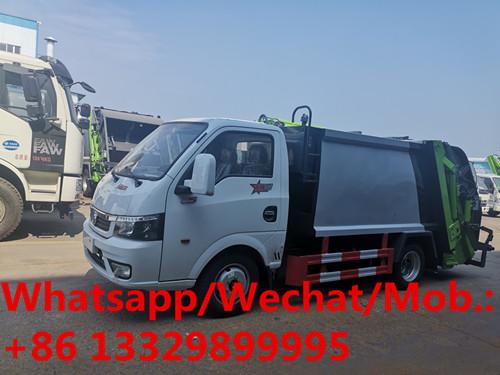

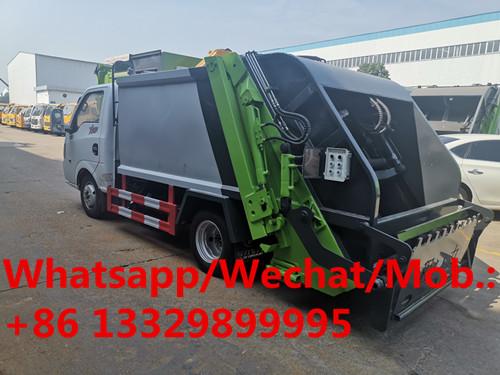

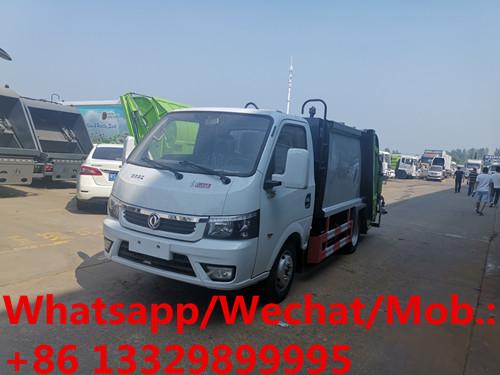

More pictures of dongfeng tuyi 3.5cbm garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below.
HOT SALE! garbage compactor truck for sale
Main technical parameters of dongfeng tuyi 3.5cbm garbage compactor truck as below.
| 1 | Product name |
Dongfeng 4*2 LHD 3.5cbm garbage compactor truck for sale |
| 2 | Truck chassis model |
EQ1045SJ16DC |
| 3 | Overall dimension(L*W*H) | 5995×1900×2000,2200 |
| 4 | Total mass(kgs) | 4495 |
| 5 | Curb mass(kgs) | 3865 |
| 6 | Rated mass(kgs) | 500 |
| 7 | Volume | 3.5m3 |
| 8 | Real loading capacity | About 3tons |
| 9 | Max speed | 110kw/h |
| 10 | Wheelbase | 2800 |
| 11 | Axle nos. | 2 |
| 12 | Driver cab | Dongfeng tuyi single row driver cab with air conditioner |
| 13 | Approach/departure angle(°) | 20/18 |
| 14 | Front/rear suspension (mm) | 1190/1605 |
| 15 | Front/rear tread(mm) | 1369/1246 |
| 16 | Tire specification | 185R14*6 |
| 17 | Spring | 3/5 |
| 18 | Engine model | Q23-95E60 quanchai diesel engine |
| 19 | Rated power | 70KW/95hp |
| 20 | Displacement(ml) | 2300ml |
| 21 | Fuel type | Diesel |
| 22 | Emission standard | Euro Ⅵ |
| 23 | Gearbox | 5 speed gearbox, manual |
| 24 | Front/rear axle | 1.5tons/3tons |
| 25 | Color | Different color upon request |
| 26 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 27 | Wastes van material | High quality China standard light duty steel |
| 28 | Operation way | PLC control way |
| 29 | Loading and discharging way | Rear overturning mechanism |
| 30 | Compacted way | Bi-directional compression |
| 31 | Wastes compacting density | ≥0.8tons/m3 |
| 32 | One working circle time for loading and discharging | ≤30s |
| 33 | Max compressing force | ≥150KN |
| 34 | Max passing force | ≥180KN |
The volume of dongfeng mini 3.5cbm garbage compactor truck is 3.5cbm.And with the wastes loading capacity of about 6tons. THe wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate weled.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
