Japan ISUZU 6-8cbm compression garbage truck, Customized ISUZU 5T Rear compactor garbage truck sale in Philippines
Japan ISUZU 6-8cbm compression garbage truck, Customized ISUZU 5T Rear compactor garbage truck sale in Philippines
The volume of the ISUZU garbage compactor truck is 6-8cbm. And with the wastes loading capacity of about 6tons. THe wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate weled.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of garbage trucks in China since 2004s. With many years' experience in developing, Chengli Special Automobile Co., Ltd. could supply garbage compactor truck, refuse garbage truck, swing arm garbage truck, skid loader garbage truck, side loader garbage truck, sealed garbage truck, dump garbage truck, etc. More information, please feel free to contact Ms. Anita Deng.
If you're interested in our garbage compactor truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

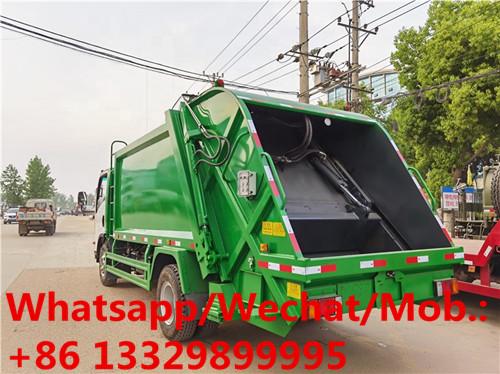

More pictures of ISUZU 700P garbage compactor truck as below.
main technical parameters of ISUZU brand 700P 8cbm compacted garbage truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Main specification | ||||||||
| Product model,name | CLW5070YSQ4 Japan 8cbm garbage compactor truck | |||||||
| Curb weight(Kg) | 4750 | Driving type | 4*2 | |||||
| Axle No. | 2 | Overall dimension for reference (mm) | 7150*2285*2950 | |||||
| Wheelbase (mm) | 3815 | Cab seats (man) | 2,3 | |||||
| Max speed(Km/h) | 85 | |||||||
| Chassis specification | ||||||||
| Chassis model | QL10703 | Manufacture | Japanese Qingling ISU ZU Auto Co.,Ltd | |||||
| Brand name | Dongfeng | Tyre No. | 6+1 | |||||
| Tyre specification | 7.00-16 | Gear box | 6 forward gears,1 reverse gear | |||||
| Fuel type | Diesel | Emission standard | Euro 4 | |||||
| Cab | Single cab, luxurious interiors and seats, air conditioning etc. | |||||||
| Engine model | Engine manufacture | Engine power | Horsepower | |||||
| 4HK1-TC51 | Japanese ISUZU Engine Co.,Ltd | 140kw | 190hp | |||||
| Performance | ||||||||
| Body capacity(m3) | 6 to 8cbm | Compression ratio | ≥2.5 | |||||
| Compression cycle time(S) | 30 | Unload garbage time(S) | 40 | |||||
| Control system | Manual +Automatic | |||||||
| Main Characteristic | ||||||||
|
1,Can choose 240L(single bin,double bins)or 360L,660L,1100L standard bin lifting and turnover mechanism,can also choose ground hopper and other kinds of loading mechanism. 2,With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. 3,With working device of emergency braking stop button. 4,Garbage body use frame design, elegant, strong structure, large effective capacity. 5,Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks. 6,Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression. |
||||||||
