HOT SALE!Dongfeng D9 190hp diesel 5tons cargo truck with crane, Mobile telescopic crane boom mounted on cargo truck
HOT SALE!Dongfeng D9 190hp diesel 5tons cargo truck with crane, Mobile telescopic crane boom mounted on cargo truck for sale
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us.
If you're interested in our truck with crane, please kindly send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.
Website: www.trucksinchina.com
Today, we will introduce HOT SALE! Dongfeng D9 5T telescopic crane boom mounted on cargo truck is as below.

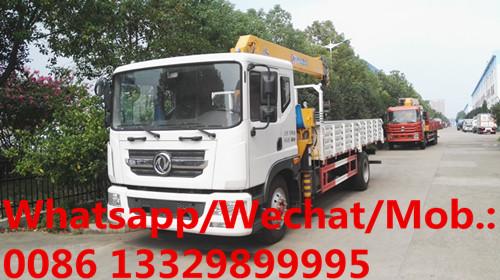

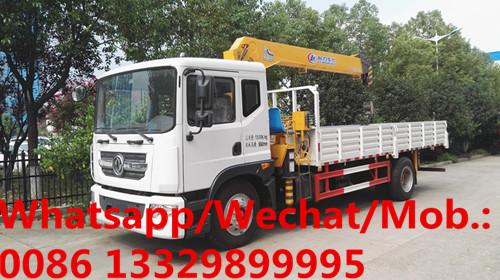

DONGFENG D9 5T cargo truck with crane, adopts dongfeng D9 one row and a half D9 luxurious driver cab, 4500mm wheelbase, 9.00R20 rail tires, fastgear 8 speed gearbox,B190 33 190hp diesel engine, 3.9T front axle/8T rear axle, 250mm double layers boom, etc.
And the cargo body box dimension (L*W*H): 5200×2350×550,600(mm); and the overall dimension(L*W*H) of dongfeng D9 cargo truck with crane is 8400×2500×3600(mm).
Clients choose to install high quality CLW/XCMG brand 6.3tons/8tons telescopic crane boom mounted on dongfeng D9 cargo truck.
Main technical parameters of Dongfeng D9 190hp diesel cargo truck with crane manufactured by Chengli Special Automobile Co., Ltd. as below.
| Product name | Dongfeng D9 190hp diesel 6.3tons telescopic crane mounted on truck for sale | |
| Chassis type | EQ1185 | |
| Parameters | Overall dimension length/width/height (mm) | 8400×2500×3600 |
| Cargo body dimension (L*W*H)(mm) | 5200×2350×550,600 | |
| GVW(kg) | 15800 (Kg) | |
| Kerb Mass(kg) | 10500 (Kg) | |
| Rated mass(kg) | 7305(Kg) | |
| Approach angle/ Departure angle(mm) | 19/11 (°) | |
| Front suspension/rear suspension(mm) | 1260/2640 (mm) | |
| Fuel Type | diesel | |
| Max Speed | 105 | |
| Engine | Type | B170 33 |
| Displacement/Power(kw) | 5900ml/140KW/190hp | |
| Manufacturer | Dongfeng Cummins Engine Co.,Ltd | |
| Type | 6-in-line inter-cooling; intercooling | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 4500 | |
| Tread(front/rear) | 1862/1806 (mm) | |
| Transmission | Fastgear 8 speed transmission | |
| Braking system | Air braking | |
| Cab | Dongfeng D9 one row and a half driver cab | |
| Number of spring axle(front/rear) | 8/10+7 | |
| Tire Type | 10.00R20 tires | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5200×2350×550,600 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install XCMG Brand 3/4 sections telescopic crane boom | |
| Lifting height | 10.8m/12.8m | |
| Working radius | 8.8m/11.2m | |
| Aerial operation seat | Yes | |
| Hydraulic operation | Yes, full hydraulic operation | |
| Full rotation | Yes, full rotation | |
| The color of the whole truck is upon request. | ||
