dongfeng 10cbm water tanker truck for sale,HOT SALE! Dust suppression multifunctional sprinkler disinfection vehicle
Price:
negotiable
MOQ:
1 unit
Delivery Time:
20 days
Brand:
CLW
Product Description

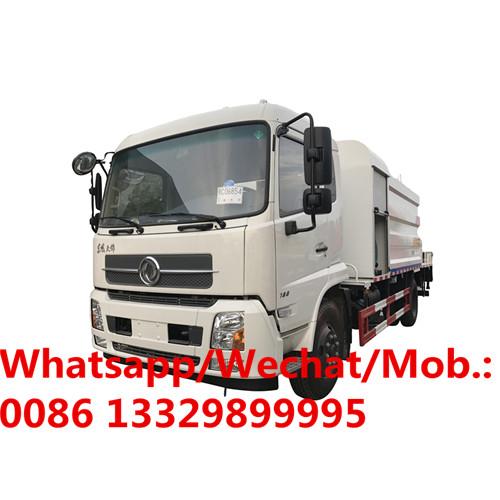

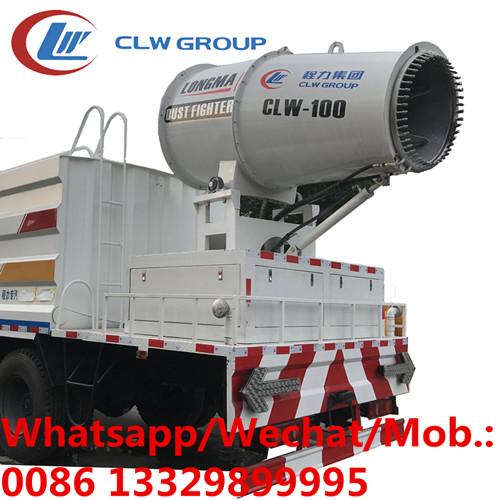

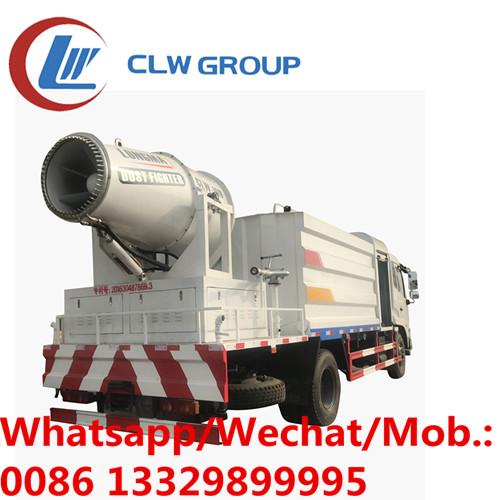

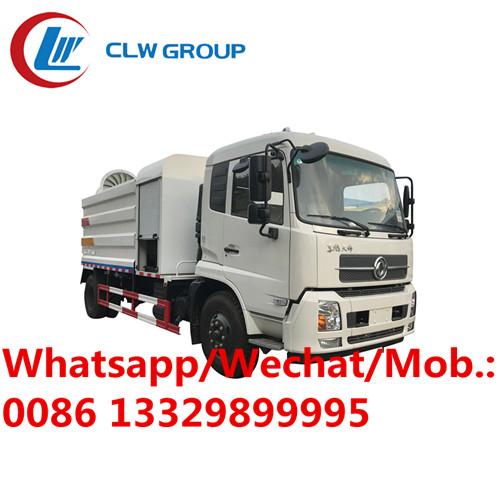

dongfeng 10cbm water tanker truck with 100m water spraying machine,
Anti- Dust , mist spray truck, mainly used for pollution prevention and control in coal yard, construction site, coal dust, sand-fixation, cement , enterprises of various open-air yard ecological slope protection. It can clean the street, suppress dust, , fire fighting, and clean air.
It save a lot of water compared to traditional water tanker truck.
Specifications:
1.Supply to USA,Europe,and Austrilia, South-east Asia, Africa, etc.
2.Matrial:carbon steel, stainless steel, aluminium alloy, etc.
3.Professional Perfomance special trucks supplier
4.specification
Whatsapp/Wechat/Mob.: 0086 13329899995.
Website: www.trucksinchina.com
main technical parameters of dongfeng 10cbm water tanker truck with 100m water spraying machine for sale
| Main Technology Parameter | |
| Model Name | CLW brand 100 meters disinfection vehicle |
| Driving Type | 4×2, |
| Color | White color |
| Weights | |
| Rated payload weight(kg) | 10000 |
| Curb weight(kg) | 10500 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | 8700*2480*3750 |
| Max speed(km/h) | 95 |
| Engine | |
| Engine model | Cummins brand ISB180 50 |
| Emission standard | Euro V |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders | straight-4 cylinders, diesel |
| Displacement(L) | 5.9L |
| Max. output (kw) | 133kw (180HP) |
| Drive Line | |
| Transmission | 6 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Oil brake with vacuum pump |
| Axle | |
| Front axle | 5 tons |
| Rear axle | 10 tons with ABS |
| Tire specification | |
| Tire specification | 9.00R20 standard tire,6 tires+1 spare tire |
| Water tank | |
| Water tank volume | 11 cbm |
| Max sprayer range for the dust suppression or disinfection (m) (no wind) | 100 meters, with double spray ring. |
| Nozzles qty(pcs) | 110 units |
| Covering areas | 20900/31400 |
| Motor for the sprayer | 30KW |
| Power for the drive pump | 7.5KW |
| Water pump type | multi-stage centrifugal pump 1.5-2.0Mpa |
| Pitching angle | -10° — 60° |
| Horizontal Rotation Angle | +-120°/+-180° |
| Protection level | IP55 |
| Power engine | 50 kw |
| Remote Control Distance | 100m |
| Control Method | Remote control and manual control |
| Front spraying width | >14 meters |
| Side spray width | >8 meters |
| Rear spray width | 5-8 meters |
