beiben 6*4 20m3 20000 liters water transport tank spray bowser truck, cistern tanker transported vehicle for sale
The water truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water carrier truck is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also , the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain, moderate rain, heavy rain, etc. The spraying width of clw water truck is more than 15m and the cannon range is more than 25m.
1.Tank material of water tanker:
Carbon steel or stainless steel,4mm/5mm/6mm thick for choose.
2. Water pump:
The water truck is installed CLW Famous Brand water pump(suction lift range bigger than 6m).
3. Kind of the sprayer:
Including Front flush, Rear Sprinklers, Side Spray, water monitor install rear working platform.
(water monitor can be adjust to Heavy rain, moderate rain, light rain, mist)
4. Options: Fog connon to spray pesticides and disinfectants.
If you're interested in our water tanker truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.
Website: www.trucksinchina.com

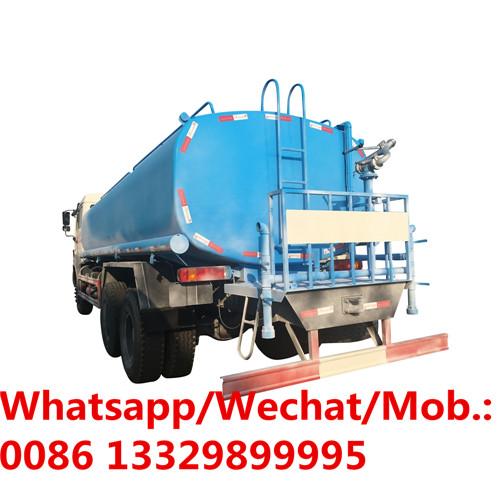

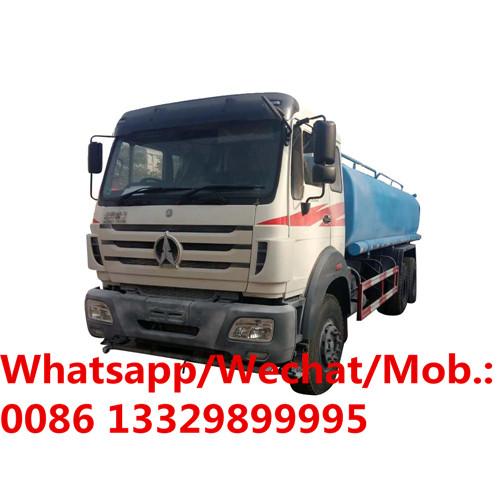

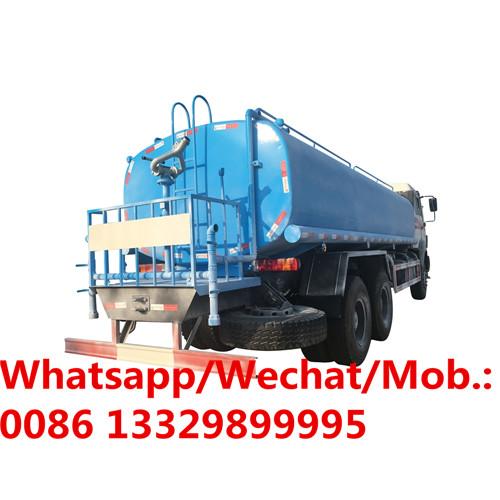

More pictures of beiben brand water tanker truck is as below.
HOT SALE! BEIBEN brand 20cbm water tanker turck for sale
new designs beiben 10 wheeler 336 hp 248KW 20m3 20000 liters water transport tank spray bowser truck for hot sales main techncal information as follow:
| Main Technology Parameter | |
| Model Name | 15-25cbm water spray truck |
| Driving Type | 6×6 or 6X4, LHD or RHD |
| Color | Red, blue, White, yellow, etc. |
| Weights | |
| Rated payload weight(kg) | 20000 |
| Curb weight(kg) | 11100 |
| Total weight(kg) | 31100 |
| Dimensions | |
| Wheelbase(mm) | 5050+1450 |
| Overall Dimension(mm) | 10560*2480*3200 |
| Box dimension | 6500*2480*1520 |
| Max speed(km/h) | 85 |
| Engine | |
| Engine model | WD12,336 |
| Engine type | Vertical/in-line/water-cooling/ four-stroke/ supercharged intercooler |
| No. of cylinders | straight-6 cylinders |
| Displacement(L) | 9.7L |
| Max. output (kw) | 248kw/336hp |
| Drive Line | |
| Transmission | 12 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Oil brake with vacuum pump |
| Axle | |
| Front axle | 7tons |
| Rear axle | 13 tonsX2 |
| Tire specification | |
| Tire specification | 12.00R20 standard tire,6 tires+1 spare tire |
| Water tank | |
| Loading volume | 15-25CBM |
| Box material | 6mm Q235B |
| Man hole | 1EA |
| Pump for the water tank |
One unit: Rate of flow:60cbm/hour. Power:22.5kw; Pump discharge:90m |
| Function |
Equipped with 50kw diesel engine fun, and the range straggling is 50 meters; Top and bottom spray Angle is -10°to 45º; right and left spray angle is 0°to 360º; Equipped with front (rear, side) sprinkler (sprinkling width>14m ) Equipped with rear working platform with water cannon (range>35m) Equipped with CLW pump(suction lift≥7m) Equipped with Fire valve, Water valve, Ball valve, Water pump, PTO, Water hose, and Filter gauze Filling time≤300s |
