Dongfeng tianjin 4*2 LHD 8T flatbed wrecker towing truck with telescopic crane boom, Good price breakdown recovery truck
HOT SALE!Dongfeng tianjin 4*2 LHD 8T flatbed wrecker towing truck with telescopic crane boom, Good price breakdown recovery truck for sale,
Customized dongfeng Tianjin 4*2 LHD 8T flatbed wrecker towing truck with 6.3tons crane boom is as below.
| Overall parameters | Product name | Dongfeng Tianjin 8T flatbed wrecker tow truck with crane for sale (6.3T crane boom) |
| Manufacturer | Chengli Special Automobile Co., Ltd. | |
| Product model | CLW5182TQZD6 | |
| Total mass(kgs) | 18000 | |
| Rated mass(kgs) | ||
| Curb mass(kgs) | 13300 | |
| Overall dimension (L*W*H)(mm) | 9650×2550×3700,3540 | |
| Chassis parameters | Driver cab | Dongfeng TIANJIN one row and a half driver cab |
| Approach/departure angle(°) | 17/12 | |
| Front/rear suspension(mm) | 1400/2470 | |
| Axles nos. | 2 | |
| Wheelbase(mm) | 5000 | |
| Axle load(kgs) | 6500/11500 | |
| Max speed(km/h) | 89 | |
| Tire specification | 11R22.5*6 | |
| Steel spring | 8/9+6 | |
| Front/rear tread(mm) | 1980/1860 | |
| Engine model | B190 33 | |
| Fuel type | Diesel | |
| Emission standard | Euro Ⅲ | |
| Gearbox | Fastgear 8 speed gearbox, manual | |
|
Upper part parameters
|
Flatbed dimension(L*W)(mm) | 6200*2400 |
| Hydraulic winch | 8tons | |
| Operation way | Bilateral linkage operation | |
| Loading capacity of the flatbed | 8tons | |
| Wire rope | 35m length | |
| fixation forks | 2 sets | |
| Supporting forks seat | 1 set | |
| Special binding belts | 6 sets | |
| Caller with alarm light | Yes | |
| Crane boom | Choose to install 5tons/6.3tons/8tons telescopic/knucle crane boom |
This dongfeng tianjin 4*2 LHD 8tons flatbed type wrecker towing truck with telescopic crane boom adopts dongfeng tianjin 4*2 LHD one row and a half luxurious driver cab, 5000mm wheelbase, 8 speed manual gearbox, B6.2NS6B210 Euro 6 diesel engine, 5tons front axle/9tons rear axle, 10.00R20 rail tires, 280L steel oil tanker, original air conditioner, etc.
The length of the flatbed for the dongfeng TIANJIN wrecker tow truck is 6000mm-6200mm; while the width of the flatbed is 2350-2550mm,
The standard devices of dongfeng tianjin 4*2 LHD 8tons road wrecker tow truck as below
1, 6 tons loading capacity for the upper part/flatbed
2, 6T hydraulic winch and 25m length wire rope
3, 5tons loading capacity of rear towing arm(choose to install)
4, auxiliary wheels*2 sets
5, bilateral linkage control valve
6, fully hydraulic flipping plates
7, caller with alarm light
8, auxiliary wheels*2 sets
9, 4* special binding belts
10, CLW Brand 5tons/6.3tons/8tons telescopic crane boom

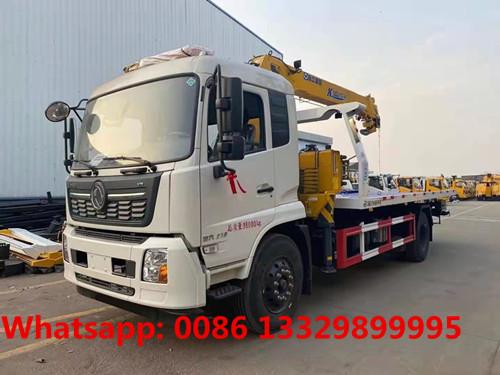

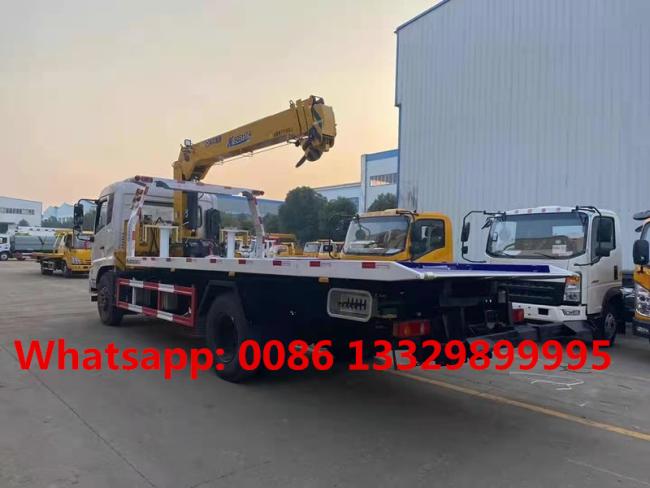

More pictures of dongfeng tianjin 8T wrecker truck with crane boom is as below.
If you're interested in our wrekcer towing truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

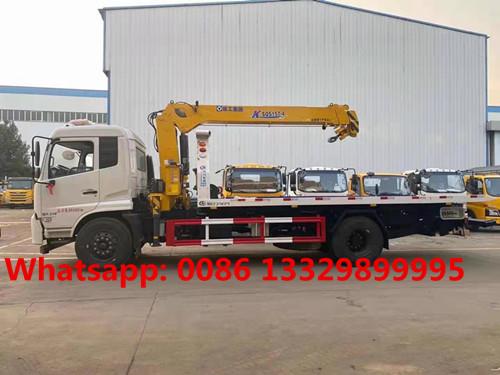

More pictures of DONGFENG TIANJIN 8T wrecker truck with telescopic crane boom is as below.
