Customized Dongfeng 4T road wrecker towing truck flatbed type with crane boom for TOGO, street towing recovery vehicle
Customized Dongfeng 4T road wrecker towing truck flatbed type with crane boom for TOGO, HOT SALE! street flatbed breakdown recovery vehicle
dongfeng flatbed truck mounted crane (also called flatbed towing truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker ) is used to transport motor vehicles or the vehicles that are broken down.
Based on the type or size of vehicle to be towed, wreckers are usually designed into two types. One is slide-bed tow truck with wheel-lift function; another one is wheel-lift units that offer a combination boom with sling.
The tow truck is also called road tow truck, road wrecker, wrecker tow truck, wrecker, towing truck, breakdown truck, wrecker truck, recovery truck, road rescue vehicle,
etc.
Our flatbed tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch,
tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
The rollback tow truck can hoist, lift, draw and be with other special functions, mainly used in
highway, garage and city road obstacle cleaning.
As a china tow truck manufacturers , our rescue vehicle can meet all your demand. Right hand rollback tow truck, left hand drive rollback tow truck, 4x2 wreckers, 6x4 wreckers, 8x4 tow wrecker trucks,etc. In wrecker types, we produce plat form tow truck, under lift wrecker truck, rotator tow truck, full landing rollback tow truck, double flatbed wrecker truck, etc.
the technical advantages of CLW Brand wrecker towing truck as below.
1. small angle of flatbed to ground, easy for broken car to be on it.
2. Thick good quality checker plate platform, long service time, skid-proof
3. Adpot Italy imported special balance valve.
4. Operate on both sides of the truck and remote is available.
If you're interested in our wrecker towing truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
Website: www.trucksinchina.com
More pictures of dongfeng wrekcer towing truck with telescopic crane boom is as below

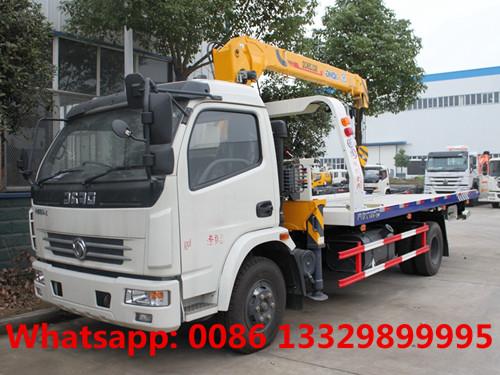

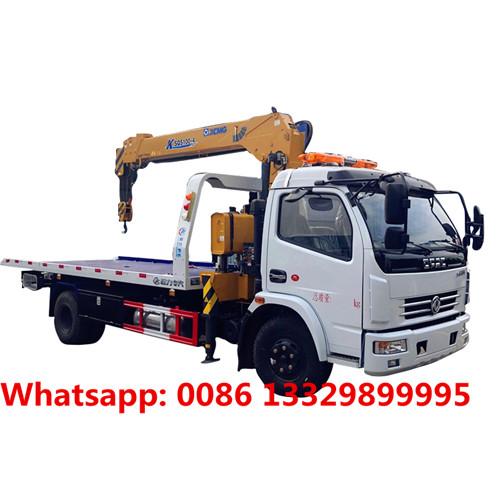

HOT SALE! DONGFENG 4*2 LHD 4T wrecker towing truck with crane boom for sale
main technical parameters of dongfeng wrekcer towing truck with telescopic crane boom is as below.
| Overall parameters | Product name | dongfeng 4tons wrecker tow truck with 3.2tons telescopic crane boom for sale |
| Manufacturer | Chengli Special Automobile Co., Ltd. | |
| Total mass(kgs) | 8495 | |
| Curb mass(kgs) | 6150 | |
| Overall dimension (L*W*H)(mm) | 8000×2300×3250 | |
| Chassis parameters | Driver cab | dongfeng 4*2 LHD single row 2025mm driver cab with 3 seats |
| Approach/departure angle(°) | 22/11 | |
| Front/rear suspension(mm) | 1180/2420 | |
| Axles nos. | 2 | |
| Wheelbase(mm) | 4400 | |
| Axle load(kgs) | 3060/5435 | |
| Max speed(km/h) | 90 | |
| Tire specification | 8.25R6*6+1 | |
| Front/rear tread(mm) | 1770/1640 | |
| Engine model | Yuchai 130hp | |
| Fuel type | Diesel | |
| Emission standard | Euro Ⅲ | |
| Gearbox | 5 speed gearbox, manual | |
|
Upper part parameters
|
Flatbed dimension(L*W)(mm) | 5400*2300 |
| Hydraulic winch loading capacity | 4tons | |
| Operation way | Bilateral linkage operation | |
| Rear towing arm | 2.5tons loading capacity of the rear towing arm(it is can selective) | |
| Loading capacity of the flatbed plate | 4tons | |
| Wire rope | 21m length wire rope | |
| Auxiliary wheels | 1sets | |
| Special binding belts | 4 sets | |
| Caller with alarm light(yellow color) | Yes | |
| Crane boom | Choose to install CLW Brand BALONG 3.2T telescopic crane boom | |
| Crane boom max lifting weight | 3.2tons | |
| Crane boom sections | 3 sections | |
| Crane boom lifting height | 10.6m | |
| Crane boom working radius | 8m |
Wrecker tow truck has multiple functions such as lifting, pulling and lifting towing. The wrecker is mainly used for road failure vehicles and urban illegal vehicles. And rescue and so on. Wreckers are mainly divided into tow trucks according to their categories: tow-lift conjoined type, tow-lift separation type, one tow one type, one tow two type flatbed, multi-function tow truck, hydraulic automatic clamping type.

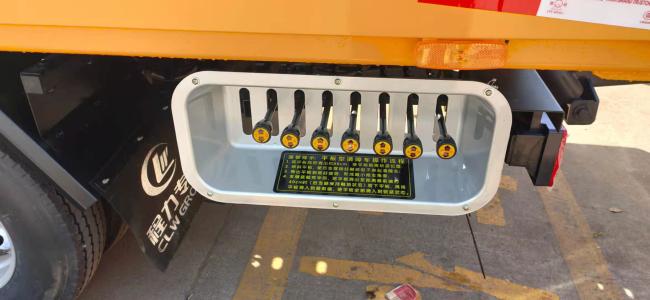

1, Bilateral Linkage
Winch, rear lift arm and flat plate can all be operated in one-key. Both sides of the body can be operated conveniently and quickly, saving time and effort.

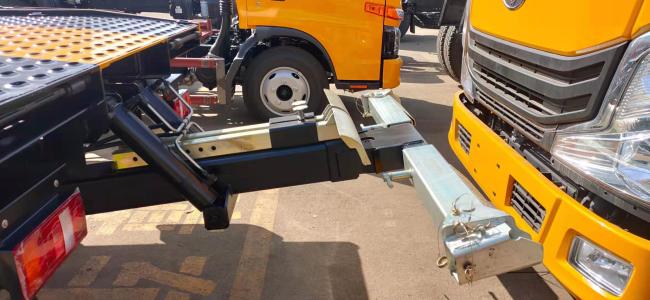

2,Retractable Rear Lift Arm
5,

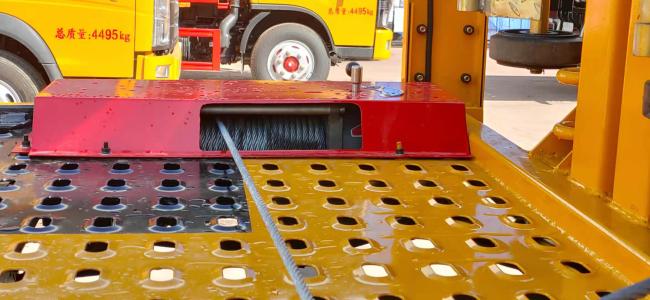

The end of the wire rope is equipped with anti-stripping hook, which is more safe and reliable when using, and the wrecker is equipped with four binders.

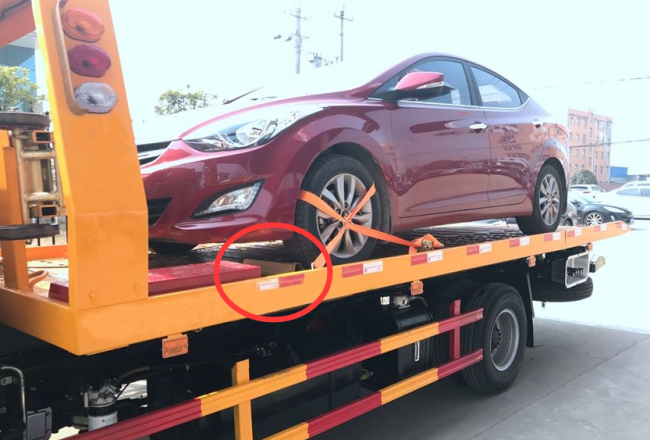

6, Front Baffle
A baffle is set on both sides of the front end of the flatbed to effectively prevent the vehicle from moving forward, which is more stable and safer.
