Customized JAC brand 4*2 LHD 6.3T/8T telescopic crane boom on cargo truck for sale, Good price cargo truck with crane
Customized JAC brand 4*2 LHD 6.3T/8T telescopic crane boom mounted on cargo truck for sale, Good price cargo truck with crane for sale
Customized JAC brand 4*2 LHD 6.3T telescopic crane boom mounted on cargo truck for sale, adopts JAC K5 one row and a half driver cab, 5000mm wheelbase, fastgear 8 speed manual gearbox, 5tons front axle/10tons strengthen rear axles, 10.00R20 rail tires, YC6JA200-50 YUCHAI 200hp diesel engine, etc.
The overall dimension(L*W*H) of JAC brand 4*2 LHD diesel cargo truck with crane is 9000×2550×3700/3850(mm); while the cargo box body dimension(L*W*H): 5750/6000×2450×550(mm). Clients choose to install CLW brand 6.3T/8T telescopic/knuckle crane boom.
Main technical parameters of JAC brand 4*2 6.3T/8T cargo truck with crane manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Product name | JAC 4*2 LHD 6.3T/8T telescopic crane mounted on truck for sale | |
| Chassis type | HFC5181 | |
| Parameters | Overall dimension length/width/height (mm) | 9000×2550×3700/3850 |
| Cargo body dimension (L*W*H)(mm) | 5750/6000×2450×550/800 | |
| GVW(kg) | 18000 (Kg) | |
| Kerb Mass(kg) | 10300,11300 (Kg) | |
| Approach angle/ Departure angle(mm) | 18/10 (°) | |
| Front suspension/rear suspension(mm) | 1400/1900 (mm) | |
| Fuel Type | diesel | |
| Max Speed | 100 | |
| Engine | Type | YC6JA200-50 |
| Displacement/Power(kw) | 6870ml/147KW/200hp | |
| Manufacturer | YUCHAI diesel engine | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 5000 | |
| Tread(front/rear) | 1820/1860/1860 (mm) | |
| Transmission | fastgear 8 speed manual gearbox | |
| Braking system | Air braking | |
| Cab | JAC K5 one row and a half driver cab | |
| Tire Type | 10.00R20 rail tires | |
| Air-condition | Yes, | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5750/6000×2450×550/800 |
| Material | Carbon steel | |
| Side sheet thickness | 3mm thickness | |
| Bottom sheet thickness | 5mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 6.3T/8T telescopic crane boom | |
| Lifting height | 13m/15.6m | |
| Working radius | 11.1m/13.5m | |
| Aerial operation seat | Yes for 8tons crane boom | |
| Hydraulic operation | Yes, full hydraulic operation | |
| Full rotation | Yes, full rotation | |
| The color of the whole truck is upon request. | ||
If you're interested in our truck wit hcrane, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
Website: www.trucksinchina.com

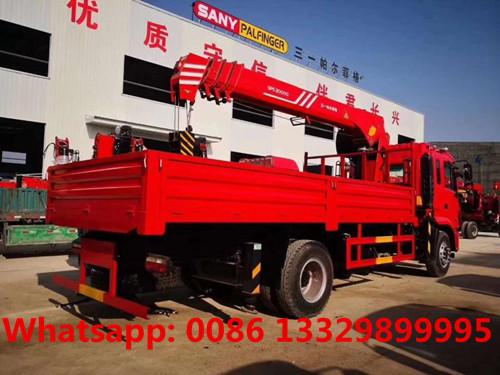

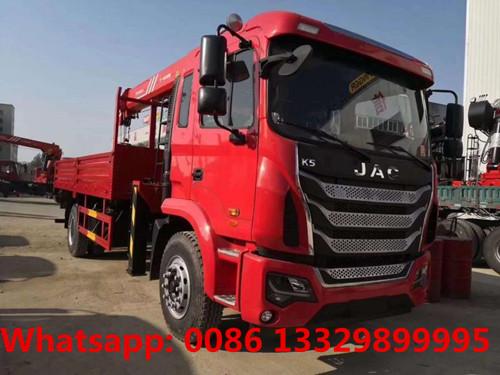

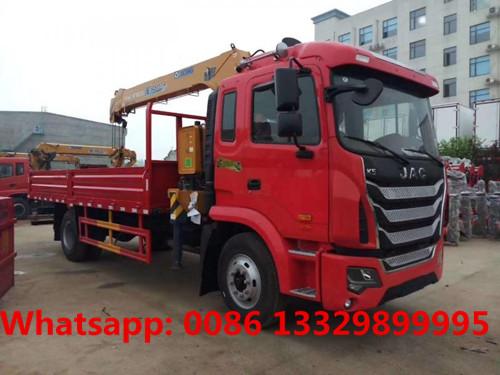

main pictures of JAC brand truck with crane 6.3T/8T is as below.
As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply truck mounted crane from 1ton to 20ton and heavy duty truck with cranes. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
