HOT SALE! FOTON AUMARK 4*2 LHD 4T rollback tow truck, Good price flatbed wrecker towing vehicle for sale

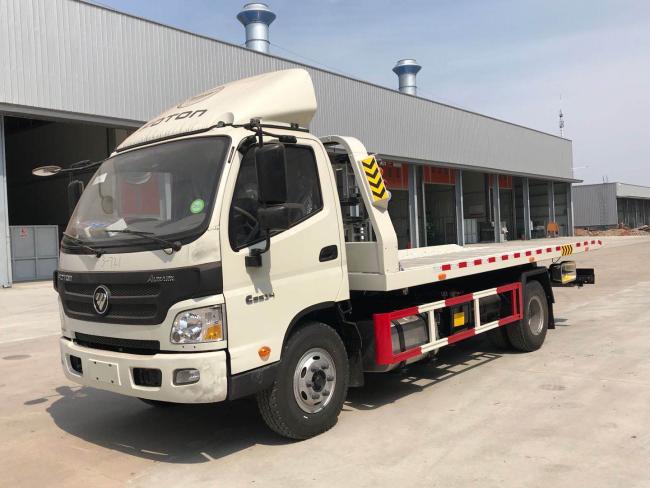

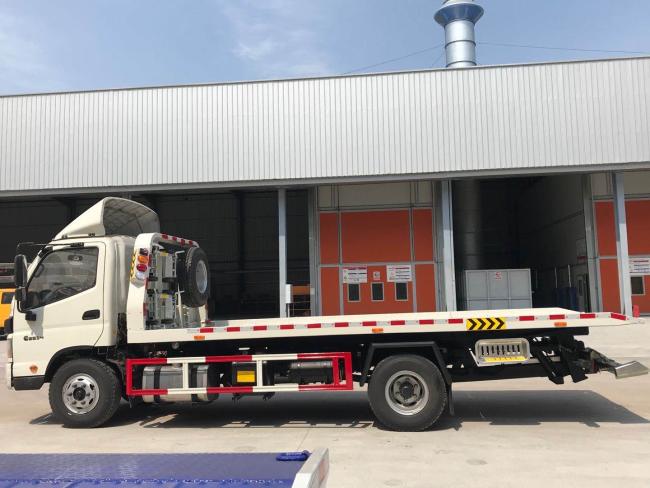

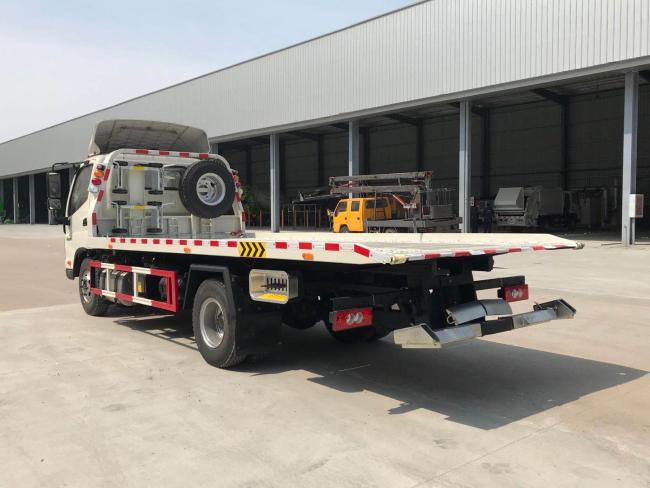

Good quality and best price FOTON AMARK 4*2 LHD wrecker towing truck customized for clients is ready, please check the picture is as below.
As a professional tow truck wrecker supplier, our tow trucks can meet all your demand. We Chengli Special Automobile Co., Ltd. can manufacture and sell Right hand wrecker tow trucks, left hand drive wrecker tow trucks, 4x2 wreckers, 6x4 wreckers, 8x4 tow wrecker trucks,etc. In wrecker truck types, we produce flatbed tow truck, under lift wrecker truck, rotator tow truck, full landing wrecker tow truck, etc.
main technical parameters of Euro 5 dongfeng tianjin wrecker towing truck manufactured by Chengli Special Automobile Co., Ltd. as below
1. The road wrecker truck is also called rollback wrecker beds truck, tow truck wrecker, wrecker towing truck, wrecker, road block removal truck, breakdown truck, tow truck, recovery truck, towing truck, etc, which is used for dealing with the cars and trucks in accident.
2. Our recovery truck vehicle consist of the chassis, hoisting equipment,truck tow hook, tow truck winch,
tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
3. Currently there are tow mainly design for wrecker trucks, flat bed model and towing model.
Flat bed model is mainly designed for cars, which could transport two units cars, with the weight design 5 tons around.
Towing model is mainly designed for deal with heavy duty vehicles, with the weight above 10 tons.
If you're interested in our wrecker towing truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
Website: www.trucksinchina.com
main technical parameters of FOTON AUMARK wrecker towing truck is as below.
| Vehicle model | AUMARK-C38 | |
| Cabin | Single row/W1995/right rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 6725×2100×2280 |
| Wheel base(mm) | 3800 | |
| Weight data | Curb weight(kg) | 3305 |
| Gross vehicle weight(kg) | 6500 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed(km/h) | 95 |
| ENGINE | Model | F3.8s3141 |
| Emissions standards | EuroⅢ | |
| Displacement(L) | 3.76 | |
| Rated Power(kw/rpm) | 105 | |
| Max torque (N.m/rpm) | 450 | |
| Gearbox | Model | 6TS55 |
| Front axle | Type/Mainreducetion ratio | 2.5T |
| Rear axle | Type/Mainreducetion ratio | 6.0T/4.875 |
| Suspension | Front suspension/Leaf spring number | 9 |
| Rear suspension/Leaf spring number | 11+7 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1(8.25R16) | |
| Upload parameters | Lifting system | Maximum lifting weight(kg) | 1800 | |
| Maximum lifting capacity at full extension(kg) | 1330 | |||
| After Joe distance (mm) | 2540 | |||
| Effective length of bracket (mm) | 1640 | |||
| Support arm telescopic stroke | 1340 | |||
| Telescopic stroke of bracket (mm) | 7 | |||
| The lower Angle of the bracket | -9.5 | |||
| The maximum distance from the ground on the upper surface of the fully retracted cross arm (mm) | 550 | |||
| platform | Inner Length (mm) | 5550 | ||
| Inner Width (mm) | 2220 | |||
| Minimum inclination Angle of platform | 8 | |||
| Platform working stroke (mm) | 2700 | |||
| Platform height above ground (mm) | 1070 | |||
| Maximum bearing capacity of plate mechanism (kg) | 3000 | |||
| winch | Quantity | 1 | ||
| Rated traction per unit (kN) | 40 | |||
| Diameter of wire rope (mm) | φ11 | |||
| Length of wire rope (m) | 25 | |||
| Capstan Diameter (mm) | φ110 | |||
| Minimum linear speed of wire rope (m/min) | 5 | |||
| Basaic configuration | Hydraulic winch | Hydraulic control system | ||
| L-shaped tow arm | Hydraulic lock | |||
| High strength side panels | Alarm light (mounted on the gantry frame, removable | |||
| Lighting alarm light system | Lashing rope: 4 pieces | |||
| Training wheels | Take power. | |||
