Good price pharmaceutical products refrigerated truck, refrigerated truck for pharmaceutical products transportation
HOT SALE FOTON AUMARK T series 130hp diesel vaccine transportation van car, Good price pharmaceutical products transported refrigerated truck, refrigerated truck for pharmaceutical products transportation for sale
And the cold room box body dimension(L*W*H) of this FOTON AUMARK 5T diesel frozen van truck for transported pharmaceutical products is 5100×2100×2100 (mm); while the overall dimension(L*W*H) of this SINO TRUK HOWO refrigerated truck is 6785×2130×2330 (mm). Exterior and interior with FRP(Fiber Reinforced Plastic), and the middle with PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. Baseboard adopts anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. double rear door opened. Choose high quality China made self-powered frozen refrigerating reefer of the model of T-800M, the lowest temperature is up to -18℃. And the reefer can be adjusted at the driver cab.
The cold room van body is install stainless steel material pharmaceutical products ventilation slots and temperature and humidity recorder with printing function and GPS (Global Positioning System).
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc.
If you're interested in our refrigerated truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.
Website: www.trucksinchina.com

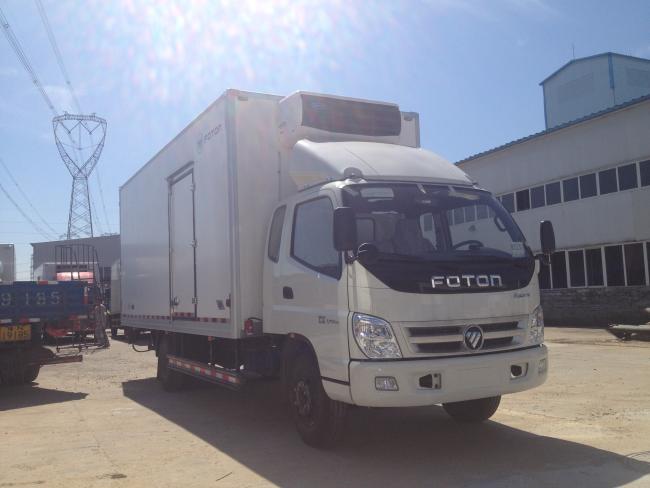

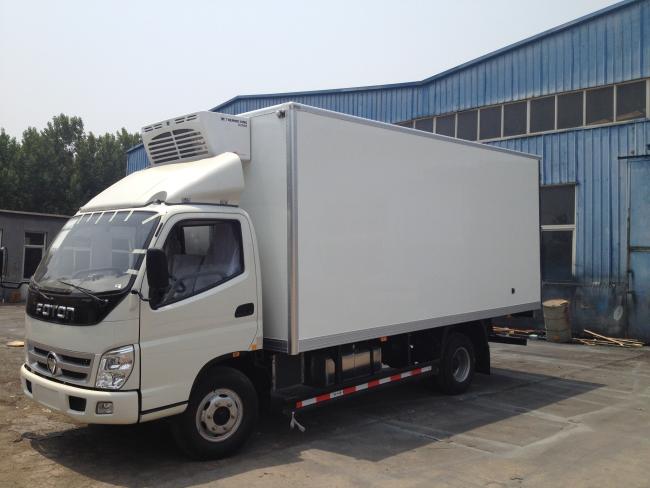

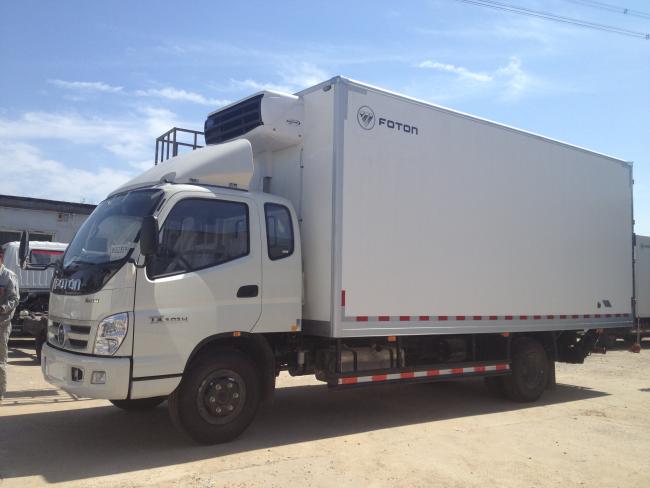

More pictures of FOTON AUMARK refrigerated truck is as below
main technical parameters of FOTOM AUMARK Refrigerated truck is as below.
| Vehicle model | AUMARK-T38 | |
| Cabin | Single row/W1995/left rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 6785×2130×2330 |
| Wheel base(mm) | 3800 | |
| Weight data | Curb weight(kg) | 3110 |
| Gross vehicle weight(kg) | 8500 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed(km/h) | 95 |
ENGINE |
Model | YC4D130-33 |
| Emissions standards | EuroⅢ | |
| Displacement(L) | 4.214 | |
| Rated Power(kw/rpm) | 96 | |
| Max torque (N.m/rpm) | 380 | |
| Gearbox | Model | 6T120 |
| Front axle | Type/Mainreducetion ratio | 2.5T |
| Rear axle | Type/Mainreducetion ratio | 6.0T/5.286 |
| Suspension | Front suspension/Leaf spring number | 9 |
| Rear suspension/Leaf spring number | 11+7 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1/( 8.25R16) | |
| Packing case | Internal size | 5100*2100*2100 |
| The material | Inside and outside: glass steel plate, sandwich: polyurethane board (≥40kg/m3) | |
| thickness | Front plate, back plate, left and right plate: more than 80mm, top plate, bottom plate: more than 100mm | |
| The framework | The upper and lower frames and front columns are aluminum profiles or stainless steel | |
| Open the door form | Double rear door, passenger side single side door | |
| The refrigeration unit | Brand and Specifications | American Cold King /SV400 |
| Refrigeration requirements | Minimum temperature: -18℃ | |
| The optional features | No backup electricity, no heating | |
| attachment | Protective device | Side protection: comply with GB11567.1; Rear protection: according to GB11567.2 |
| Door lock and folding | Choose stainless steel material | |
| Lamps and lanterns | Adopt LED seal lamp, lampshade need to glue seal | |
| Rear pedal | Aluminum alloy pedal | |
| interior |
1. Install T-shaped aluminum guide rail and patterned anti-collision plate (300mm height) / 2. All around are equipped with ventilation grooves, and both sides of the side plates are equipped with two stainless steel grooves for goods 3. Temperature recorder 4. Install side curtain and rear curtain |
|
| special performance | Corrosion protection | Cargo box should meet 504 hours of salt spray test (including connecting bolts, welding points, paint surface corrosion resistance). |
| In the rain | The rainfall intensity is 5mm ~ 7mm/min, and there is no water inflow and leakage after 30min test. | |
| airtight | Under the condition that the pressure difference between inside and outside the compartment is 100± 10Pa, the air leakage ratio is less than or equal to 6.3L /h | |
| Heat insulation | The average wall temperature of the carriage is 293K ~ 298K, and the total heat transfer coefficient K is less than or equal to 0.5 |
