Factory sale best price FOTON 4,000L sludge tanker vehicle, Customized diesel vacuum tanker car truck for sale
The vacuum sewage suction truck is also called sewage truck,vacuum pump sewage truck, sewer vacuum truck, sewer tanker truck,vacuum sewage suction truck, sewage suction tanker truck, etc. It mainly used for sucting, transporting and discharging of feces, sewage, wastes water from septic tanker and sludge from drains. Widely used by municipal environment and sanitation department and residential management.
As a professional sewage pump truck manufacturer in China, the volume of the sewage tanker trucks manufactured by Chengli Special Automobile Co., Ltd. are from 3000 liter to 20000 liters.
the technical advantages of FOTON AUMARK 4CBM septic tanker truck manufactured by Chengli Special Automobile Co., Ltd. as below.
1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed
hydraulically. With full opening design, discharge can be very quick&complete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit emptier.
If you're interested in our sludg tanker truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

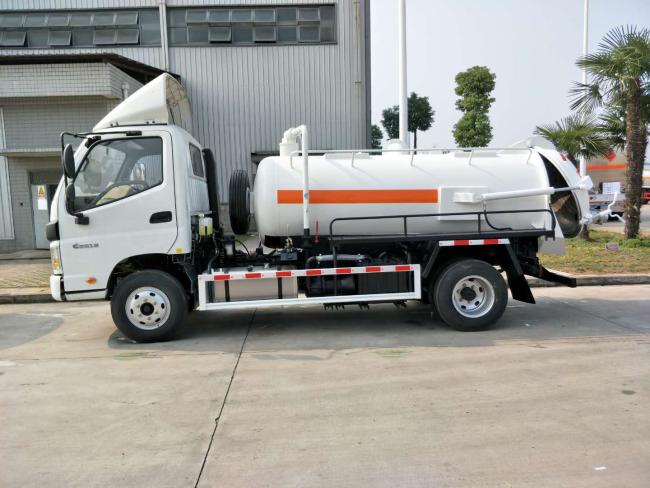

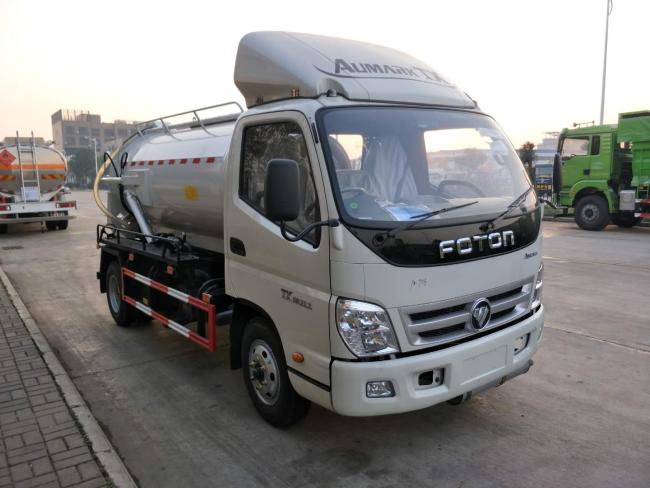

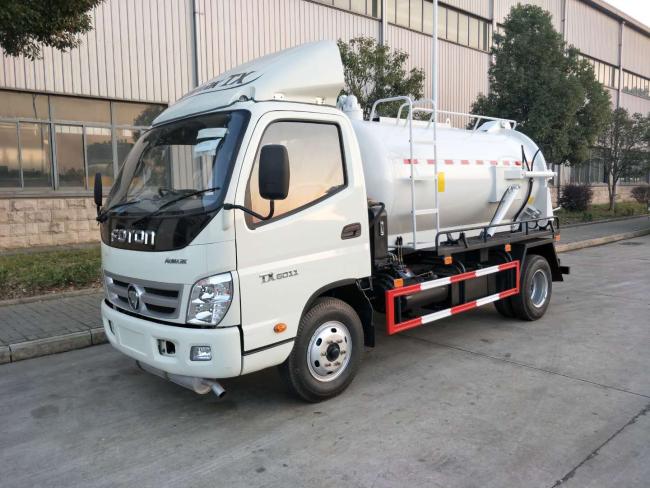

More pictures of FOTON AUMARK 4*2 LHD 4cbm vacuum tanker truck is as below.
main technical parameters of FOTON AUMARK 4CBM sludge tanker truck is as below.
| Vehicle model | AUMARK-T33 | |
| Cabin | Single row/W1800/left rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5875×1915×2230 |
| Wheel base(mm) | 3360 | |
Weight data |
Curb weight(kg) | 2100 |
| Gross vehicle weight(kg) | 4485 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed(km/h) | 95 |
| ENGINE | Model | BJ493ZLQV1 |
| Emissions standards | EuroⅢ | |
| Displacement(L) | 2.771 | |
| Rated Power(kw/rpm) | 80 | |
| Max torque (N.m/rpm) | 280 | |
| Gearbox | Model | JC5-28 |
| Front axle | Type/Mainreducetion ratio | 2.2T |
| Rear axle | Type/Mainreducetion ratio | 5.0T/6.142 |
| Suspension | Front suspension/Leaf spring number | 3+1 |
| Rear suspension/Leaf spring number | 6+7 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Central drum brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1/( 7.00R16) | |
| Tank | volume | 4m3 |
| Dimensions | Sectional shape: perfect circle | |
| Tank material and thickness |
Part of the tank material,thickness:Q235B carbon steel, 5mm Head material and thickness: Q235B carbon steel, 5mm |
|
| Wave breaker |
Quantity: 1 Material thickness: Q235B carbon steel, thickness 4mm |
|
| Sewage suction pump |
Quantity: 1 Brand: Yifeng SK-6 Rotation speed of sewage suction pump: 1450r/min Pumping speed of sewage suction pump: 100L/S Absolute working pressure: 7000Pa (93%) Pump quality: 60kg Power: 11KW |
|
| Depth of dirt absorption | 7m | |
| Full time | ≤5min | |
| power takeoff | Quantity: 1 | |
| Lifting cylinder |
Quantity: 2 Lifting cylinder: 63*35*650mm, 16MPa |
|
| Sealing cylinder with head | Quantity: 2 | |
| Multi-way valve |
Quantity: 1 Two-way valve Specification: DN20 Control method: manual |
|
| Hydraulic oil pump |
Quantity: 1 Material: aluminum alloy Flow: #63 |
|
| Vacuum pressure gauge |
Quantity: 1 Material: Stainless steel Pressure: -0.1-0Mpa |
|
| Hydraulic tubing material | Rubber steel wire hose | |
| Anti-overflow device |
Quantity: 1 Material thickness: stainless steel |
|
| Liquid level alarm | Quantity: 1 Material: SUS304 | |
| Suction port |
Specification: DN100, aluminum alloy Control method: manual Length of suction pipe: 6 meters Sewage suction pipe length: 6 m |
|
| Discharge port |
1 self-draining port at the head and tail Gravity head tail port 1 Specification: DN150, aluminum alloy Control method: manual |
|
| Stained window |
Quantity: 1 Material: organic glass Thickness: 6mm |
|
| Climb the ladder | Welded non-slip ladder on the driver side of the tank | |
| Top guard |
Protective handrails are installed on both sides of the tank top Anti-skid plate installed on the top of the tank Top of the tank mounting cleat |
|
| Material of tank foot auxiliary beam | Q345 manganese steel |
