Customized FOTON AUMARK 4*2 8T mobile crane mounted on cargo truck for sale, Lower price flatbed cargo truck with crane
Customized FOTON AUMARK 4*2 8T mobile crane boom mounted on cargo truck for sale, Lower price flatbed cargo truck with crane for sale
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
FOTON AUMARK 4*2 LHD 240hp diesel truck with crane adopts FOTON AUMARK LHD truck head, 5150mm wheelbase, 8JS105TA 8 speed gearbox, 10tons rear axle, YC6A240-33 240hp diesel engine, 11R22.5 tires*6+1, air cut braking, 24V batteries, etc.
The cargo body dimension (L*W*H) of FOTON AUMARK cargo truck with crane is 6000×2400×550,600
(mm); while the overall dimension(L*W*H) of FOTON AUMARK crane mounted on cargo truck is 9000×2500×3580(mm). And this cargo truck with crane is installed with 6.3T/8T telescopic crane boom.
Main technical parameters of FOTON AUMARK 4*2 LHD 240hp diesel cargo truck with knuckle crane boom manufactured by Chengli Special Automobile Co., Ltd. as below.
| Product name | FOTON AUMARK 4*2 LHD 8tons knuckle boom mounted on truck for sale | |
| Chassis type | BJ1188 | |
| Parameters | Overall dimension length/width/height (mm) | 9000×2500×3580(mm) |
| Cargo body dimension (L*W*H)(mm) | 6000×2400×550,600 | |
| GVW(kg) | 18000(Kg) | |
| Kerb Mass(kg) | 12000(Kg) | |
| Approach angle/ Departure angle(mm) | 18/9 (°) | |
| Front suspension/rear suspension(mm) | 1270/2580 (mm) | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | YC6A240-33 |
| Displacement/Power(kw) | 9755ml/177KW/240hp | |
| Manufacturer | YUCHAI | |
| Chassis | Drive Type | 4*2 |
| Wheelbase(mm) | 5150 | |
| Tread(front) | 3050 | |
| Tread(rear) | 1820 | |
| Rear axle | 10tons rear axle | |
| Transmission | 8 speed gearbox, manual | |
| Tire Type | 11R22.5 | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 6000×2400×550,600 (mm) |
| Material | Carbon steel | |
| Side sheet thickness | 3mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install XCMG 8tons 4 sections telescopic crane boom | |
| Working radius | Approximate 11.8m | |
| Max lifting height | Approximate 13.5m | |
| The color of the whole truck is upon request. | ||
If you're interested in our truck with crane, please feel free to send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
Website: www.trucksinchina.com

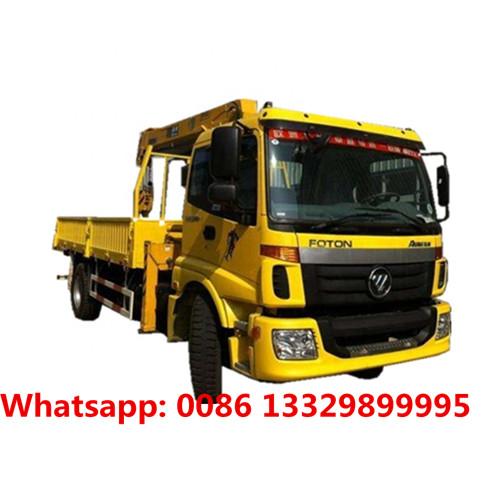

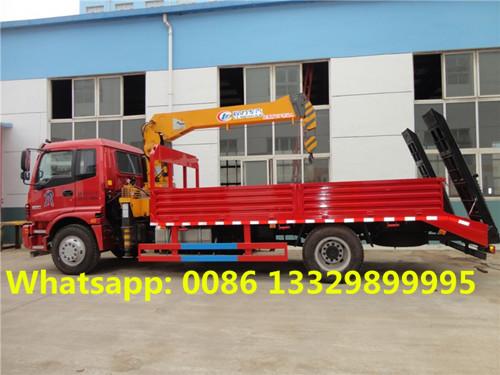

More pictures of FOTON AUMARK 4*2 8T telescopic crane boom mounted on cargo truck is as below.

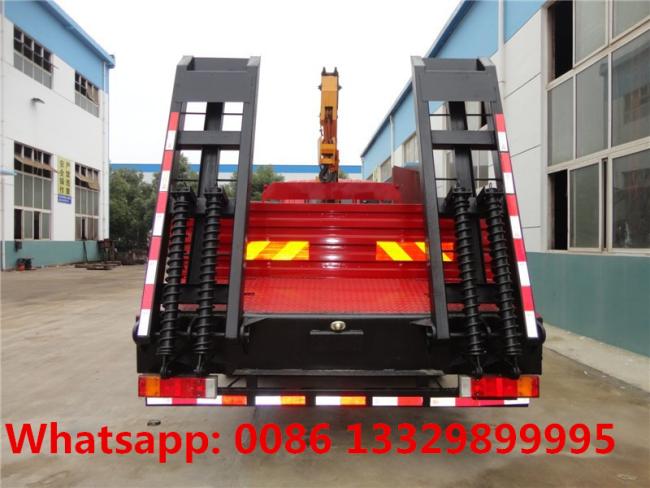

crane mounted on cargo truck with rear hydraulic ladder for sale
