ISUZU brand road Sweeper and cleaning truck for city street and airport runway for sale, Good price road sweeping car

Price Negotiable
Price: negoitiable
MOQ: 1 unit
Delivery Time: 20days
Brand: CLW
Product Description

The road sweeper lorry is designed and developed on the basis of the Qingling light truck special vehicle chassis to meet needs of sweeping and cleaning urban pavement and curb. The principle of pure suction under negative pressure is adopted to guarantee strong suction force, dust-free working, simple operation, and excellent performance. It can quickly and efficiently sweep the household garbage and spilled objects in streets and roads.



It is equipped with a dry-type dust discharge and control system to reduce fugitive dust during the process of dust discharge. It can realize the real-time monitoring and efficient management on sweeping operation through the operation quality management system. It is typically used for the cleaning of pavement and curb of main roads, high-grade highways, expressways, large and medium-sized factories and mines, enterprise campus, parks, port terminals, etc.



Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of road sweeper trucks in China. With many years’ development, we Chengli Special Automobile Co., Ltd. could offer ISUZU road sweeper truck, forland street sweeper truck, dongfeng brand road cleaning vehicle, JMC brand road sweeping vehicle, JAC brand street sweeper, FAW brand street sweeping vehicle, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13886878855.

the introduction function of road sweeper truck
1, CLW brand road sweeper truck adopts the mixing way of sucking-sweeping to collect wastes, wet-dust removal, electro-hydraulic control, finished the sweeping work by the working way of hydraulic tipping and discharging.
2, CLW brand road sweeper truck, adopts auxiliary engine specially drives the fan and hydraulic system, assuring keeping working during driving and Continuity of the sweeping process.
3, CLW brand street sweeper adopts the structure layout of “middle installed 4* sweeping brushes+ spraying and dust-removal device+ Center partition+ rear installed nozzle”, which makes non-splashing of sand and gravel during cleaning. This kind of sweeping layout is easy to adjust and maintain the sweeping and sucking devices. Perfect vehicle passivity in transit operations.
4, The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, making sure automatic disconnection of the secondary engine from the fan when starting and stopping the engine without load, reducing the impact on the secondary engine, improving the reliability and service life of the auxiliary engine
5, Sweeping disk has the functions of automatic obstacle avoidance and automatic reset; obstacles automatically retract and automatically return to obstacles.
6, The rotating speed of the pan can be adjusted according to various cleaning conditions to ensure good cleaning effect under various pollution conditions.
7, CLW brand road sweeper adopts advanced, high-efficiency dedicated fans and fully floating nozzles that can be automatically leveled along the road providing good cleaning and long service life.



If you're interested in our road sweeping vehicle, please send email to truck0011@163.com or talk to Anita by Whatsapp/Mob./Wechat: 0086 13329899995.

Website: www.trucksinchina.com

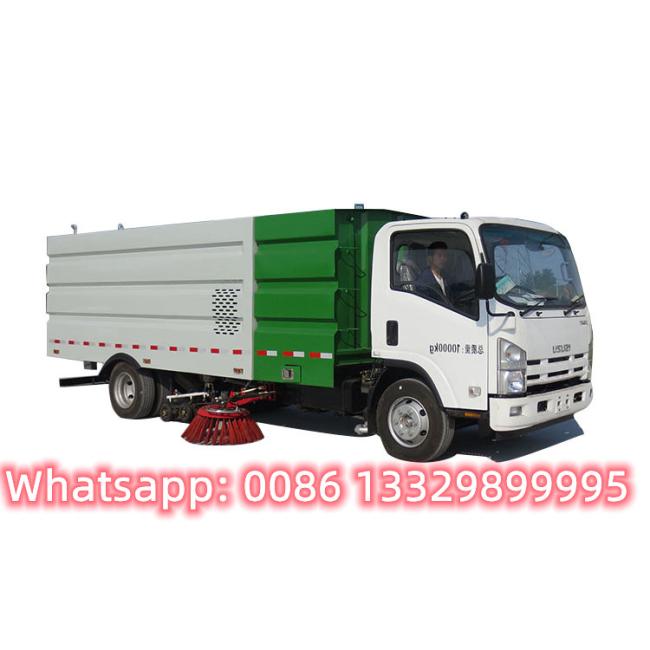

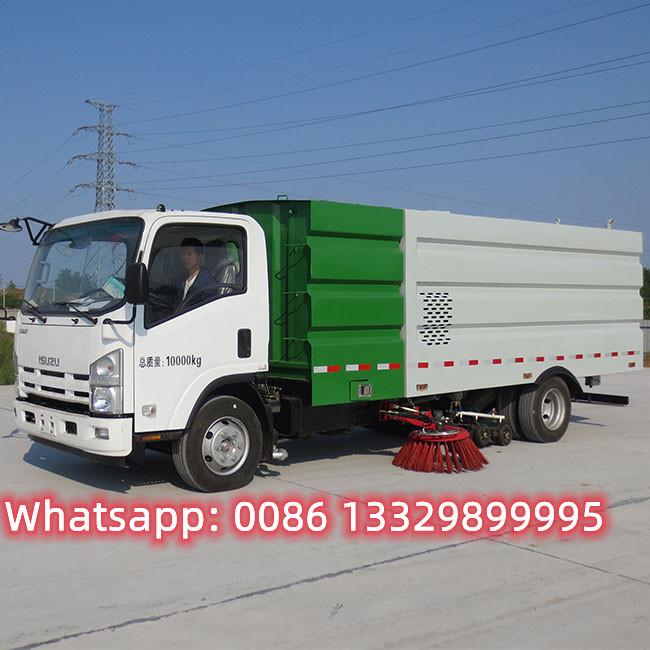

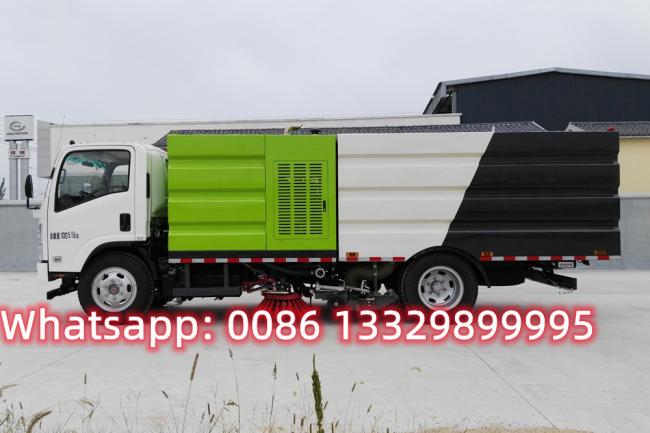

More pictures of ISUZU brand diesel road sweeping vehicle manufactured by Chengli Special Automobile Co., Ltd. is as below.



main technical parameters of ISUZU brand diesel road sweeper vehicle is as below.

Vehicle parameters
Overall dimensions 6465X1980X2435mm Curb weight 5600kg
Dust tank volume 4500L Water tank volume 1200L



Chassis parameters
Chassis model QL1070A1KAY Chassis brand ISUZU
Overall dimensions 6645x1880x2160mm Wheel base 3815mm
Front/rear wheel track 1504/1425mm Front/rear suspension 1015/1815mm
Approach/departure angle 24/14° Maximum speed 105km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd.
Cab Configuration 600P,single row cab,allowable 2 passengers,car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump
Color White,other color is optional
Engine Model 4KH1-TCG40
Emission Euro 4
Type 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine
Rated power 120hp,rated power speed 3400rpm
Displacement 2999ml
Manufacturer Isuzu Engine (Chongqing) Co., Ltd.
Tire Size 7.00-15 10PR nylon tire
Number 6+1 nos
Front axle 2.5 tons
Rear axle 4.8 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Isuzu MSB five speed transmission,5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard



Road sweeper structure parameters
Dust tank volume 4500L Water tank volume 1000L
Sweep width 3000m Cleaning speed 3-20km/h
Cleaning ability 9000-60000 m2/h Cleaning efficiency 98%
Maximum suction particle 120mm Min. clearance of suction nozzle 200mm
Unloading angle 45° Unloading height 970mm
    Color and Logo Optional
Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.
Selective configuration surveillance system,rolling brush.

Road sweeper truck is also called road sweeper truck, it combine the function of road sweeping, garbage collection and garbage transportation , is new type efficient sanitation special cleaning vehicle
