HOT SALE!SINO TRUK HOWO 6*4 LHD 12T telescopic cargo truck with crane, lower price big horsepower truck mounted crane
HOT SALE!SINO TRUK HOWO 6*4 LHD 12T telescopic cargo truck with crane, lower price big horsepower truck mounted crane for sale
As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc. The hot sale line is 0086 13329899995.
The boom truck is also called cargo crane truck, hydraulic crane truck, boom truck with crane, dump crane truck, etc. The boom truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc.
the technical advantages of CLW brand truck crane as below.
1. Customized cab of truck crane
2. Differentiated design, wide use scenarios
3. Multi-task power platform is selected, and the application area is wide
4. Single-board arm head, compact arm circumference, stilt-type counterweight box, work more convenient
5. The intelligent lifting operation room can effectively reduce the driving height and improve the passing rate and stability of the whole machine.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by WHatsapp: 0086 13329899995.
Website: www.trucksinchina.com

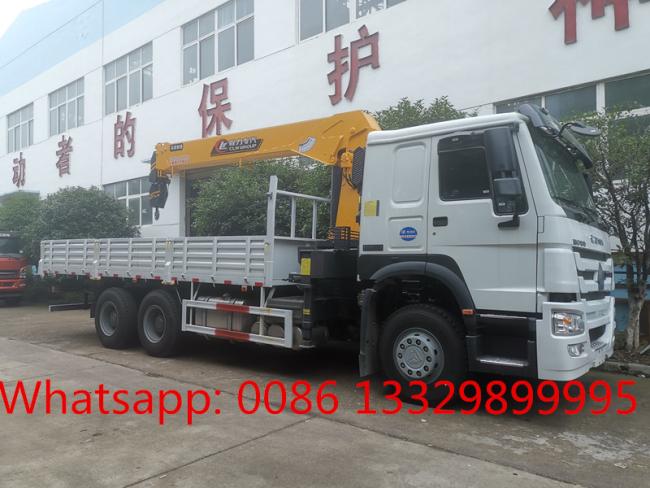

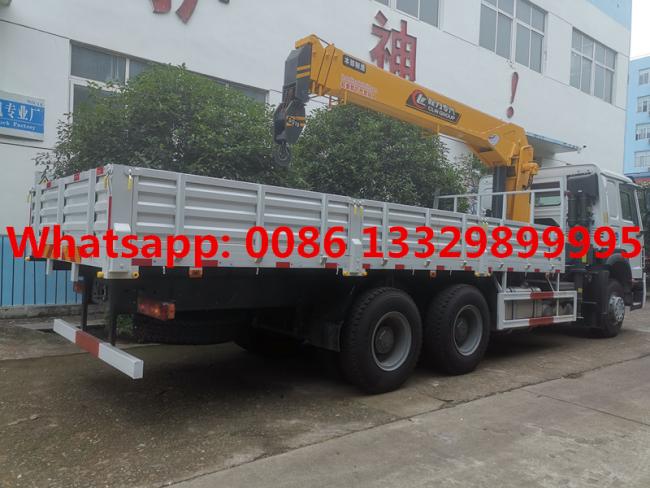

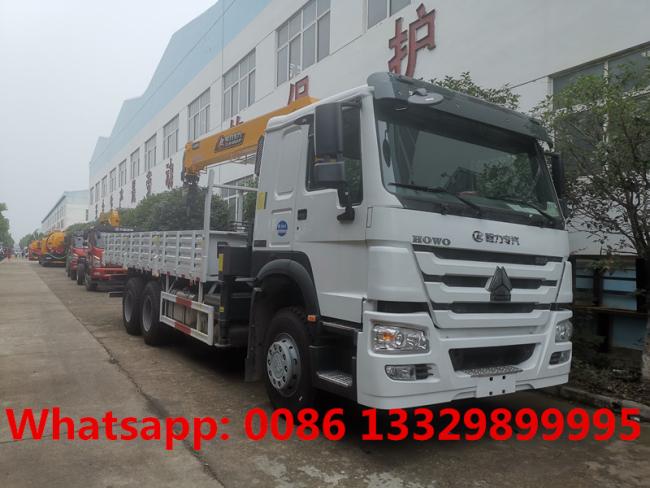

Customized SINO TRUK HOWO 6*4 LHD 12T cargo truck with crane, adopts SINO TRUK HOWO HW76 new face one row and half driver cab, 5825+1350mm wheelbase, D12.42-20 420hp diesel engine, HW19710 10 speed manual gearbox + HW70 PTO, HF9 9 tons front axle/HC16 16T double rear axles, 8+5/300 truck frame, 12.00R20 rail tires, 400L oil tanker, air conditioner, etc.
This SINO TRUK HOWO 6*4 LHD 420hp diesel truck with crane choose to install XCMG brand 12T telescopic crane/knuckle crane boom.
Main technical parameters of SINO TRUK HOWO 6*4 LHD 420hp diesel 12T truck with crane is as below
| Product name | SINO TRUK HOWO 6*4 LHD 12tons telescopic crane mounted on truck for sale | |
| Chassis type | ZZ | |
| Parameters | Overall dimension length/width/height (mm) | 11998×2498×3880,3780 |
| Cargo body dimension (L*W*H)(mm) | 8000×2300×550,600 | |
| GVW(kg) | 25000 (Kg) | |
| Kerb Mass(kg) | 15580 (Kg) | |
| Rated mass(kg) | 9290(Kg) | |
| Approach angle/ Departure angle(mm) | 20.5/10 (°) | |
| Front suspension/rear suspension(mm) | 1320/3578 (mm) | |
| Fuel Type | diesel | |
| Max Speed | 85 | |
| Engine | Type | D12.42-20 |
| Displacement/Power(kw) | 11596ml/309KW/420hp | |
| Manufacturer | ZHONGQI diesel engine | |
| Chassis | Drive Type | 6*4 |
| Wheelbase(mm) | 5825+1350 | |
| Tread(front/rear) | 1195; 1820/1820 (mm) | |
| Transmission | HW19710 10 speed manual gearbox | |
| Braking system | Air braking | |
| Cab | SINO TRUK HOWO HW76 one row and a half driver cab with air conditioner | |
| Number of spring axle(front/rear) | 10/12 | |
| Tire Type | 12.00R20 | |
| Air-condition | YES, | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 8000×2300×550,600 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install XCMG Brand 12tons telescopic crane boom (SQS300) | |
| Lifting height | 14.5m | |
| Working radius | 12.9m | |
| Aerial operation seat | Yes | |
| Hydraulic operation | Yes, full hydraulic operation | |
| Full rotation | Yes, full rotation | |
| The color of the whole truck is upon request. | ||
