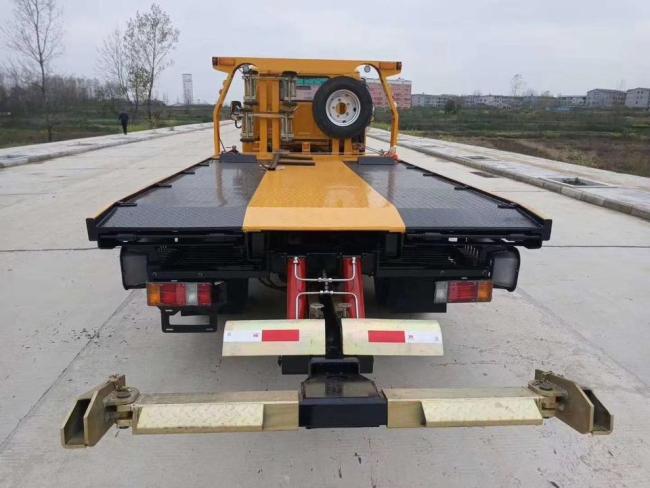

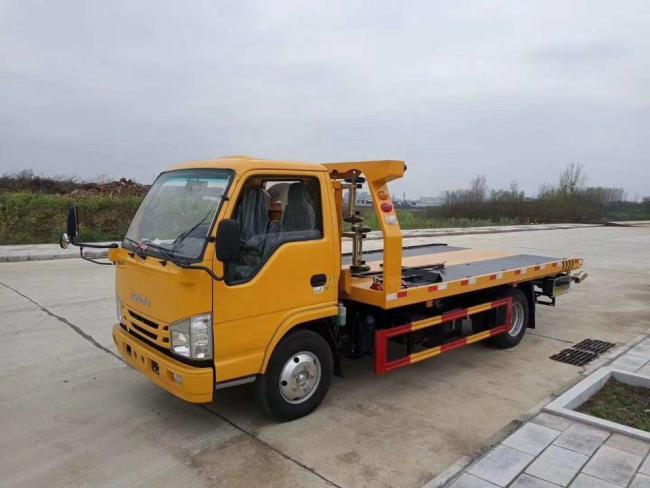

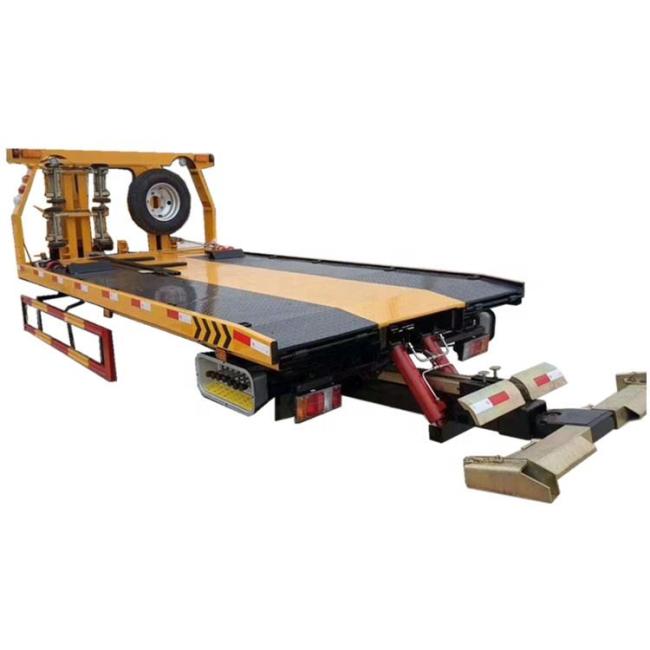

5tons towing truck hydraulic 8 degree sliding block road recovery truck body, ISUZU flatbed wrecker towing vehicle
Advantage one: 90% of the vehicle is made of high-strength aluminum alloy, with high strength and light weight
Advantage two: anti-corrosion and no rust, the car body is still refreshed after high-load work, and the value preservation rate is high.
Advantage three: The weight of the whole vehicle is 3200kg. There is no need to worry about being checked when the goods are loaded on the road.
Advantage four: The new welding process has a more advanced flat-panel structure, the flat-panel is more durable and longer-lasting.
The boom section of the boom has six sides, the strength and the stability of the boom are both big and the structure of the four sides.
Towing hook: 4tons
Crane capacity : 4tons
Lifting height :3mm
The maximum lifting height of 1200mm.
Multi valve, balance valve with Italy original import parts; hydraulic cylinder, hydraulic connector using German technology; full import seal.
The vehicle is equipped with 2 150KN (hydraulic hoist winch), 55 meter wire rope, The three section boom, three arm, split carriage, bilateral linkage operation device, the front bumper of the counterweight, After working light 3, 1 hand washing boxes, 1 sets of U type holding device, 5 pairs of bracket, 1 pairs of holder, N. 2, 1 a long row of lights, Auxiliary lamp assembly 1 sets, Auxiliary brake trachea assembly 1 sets.
If you're interested in our wrecker towing truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
Website: www.trucksinchina.com
main technical parameters of China ISUZU wrecker towing truck is as below.
| Wrecker Special features | Rated lifts quality | 5000 kg | |
| corbel telescopic stroke | 1200 mm | ||
| Corbel maximum effective length | 1300 mm | ||
| Maximum tractor speed | 40 km / h | ||
| Wrecker Flat institutions | Tablet Size L * W | 6200 * 2340(mm) | |
| panel smallest angle | 10(°) | ||
| Flat working stroke | 2700(mm) | ||
| Max weight flat-panel | 5000(kg) | ||
| Wrecker Winch parameters | Number (only) a rated takeoff weight | 4000(kg) | |
| Rope length | 23(m) | ||
| twisted rope speed | 8(m / min) | ||
|
More equipment showing here 1: flat bed thickness :5mm 2: The balance valve, cylinder block, abrasion wheel, pulley, pulley, pulley block, a baffle, tire, hoisting joint, hook, lights (side) 3: Both side Linkage 5 valve with the operating rod with shelf 4: Two units tower wheels 5: One unit “L” type tower fork (2 fork) 6: Two unit “L” type tower fork jack (2 jack) 7: Back lifting arm ( include legs,back lifting arm , back lifting arm seat), hydraulic lock ,balance valve 8: Portal frame , spare tyre rack 9: Took box ,with 5 lock 10: Hydraulic oil tank 11: 1.2meters Warning light 12: Plastic roller chain |
|||
