JBL,JBT,JBTL parallel groove clamp
Application:
JBL,JBT,JB-TL series specific parallel groove clamp is suitable for unendure force splicing and branch on the aerial wire,being
used with insulation cover,It’s action is insulation protection.
Structure feature:
◆ Select oxidize-resistance aluminum alloy
◆ All parts connected with each other,it can’t l;lose parts during installation.
◆ An are embrance the most part,conductor can’t change.
Insulation cover performance feature:
◆ Withstand voltage: ≥18kV keep voltage one minute not breakdown
◆ Insulation resistance: ＞ 1.0x1014Ω
◆ Environment temperature: -30℃~90℃
◆ Weather proof performance:have good performanced after 1008 hours
artifical climate aging test.

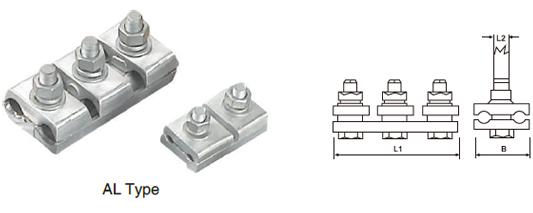

Aluminum paralled groove clamp:
|
Name |
Type |
Conductor(mm2) |
|
aluminum |
JBL-10-70 |
10-70 |
|
JBL-16-120A |
16-20 |
|
|
JBL-16-120B |
||
|
JBL-50-240A |
50-20 |
|
|
JBL-50-240B |
||
|
JBL-120-400A |
120-400 |
|
|
JBL-120-400B |

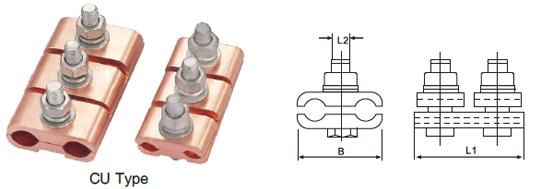

Copper paralled groove clamp:
|
Name |
Type |
Conductor (mm2) |
|
copper |
JBT-16-120 |
16-20 |
|
JBT-50-240 |
50-240 |

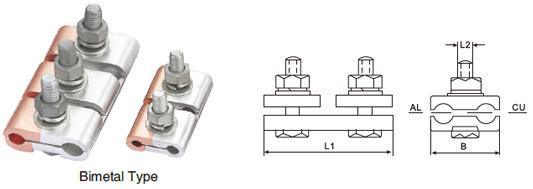

Copper-aluminum paralled groove clamp:
|
Name |
Type |
Conductor (mm2) |
|
Copper-aluminum paralled groove clamp |
JB-TL-10-70 |
10-70 |
|
JB-TL-16-120 |
16-120 |
|
|
JB-TL-50-240 |
50-240 |
