10KV puncture clamp(Type JCB)
Price:
Negotiable
MOQ:
1000pcs
Delivery Time:
7-15days
Product Description

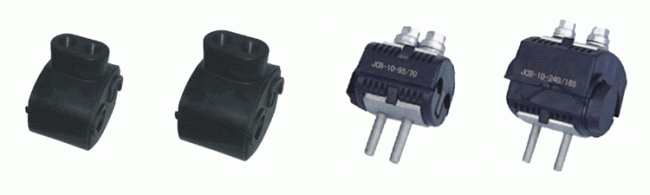

10KV puncture clamp(Type JCB)
●Scope of Application
Applicable to branch connection and succession of 10KV overhead insulated lead

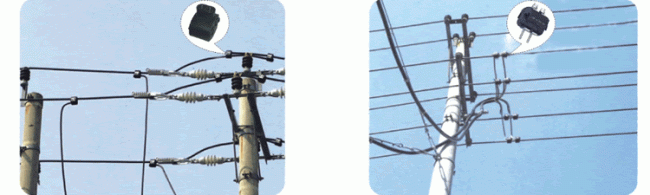

●Typical application
●Specification
|
Type
|
Conductor (mm2)
|
Dimension (mm)
|
Nominal current(A)
|
Bolt quantity
|
|||
|
Main
|
Branch
|
A
|
B
|
H
|
|||
|
JCB-10-95/70
|
25~95
|
16~70
|
68
|
82.5
|
108
|
207
|
2
|
|
JCB-10-185/50
|
95~185
|
16~50
|
78.5
|
80.5
|
108
|
162
|
2
|
|
JCB-10-240/150
|
95~240
|
50~150
|
85.5
|
82
|
113
|
342
|
2
|
|
JCB-10-240/240
|
95~240
|
95~240
|
90
|
85.5
|
113
|
476
|
2
|
