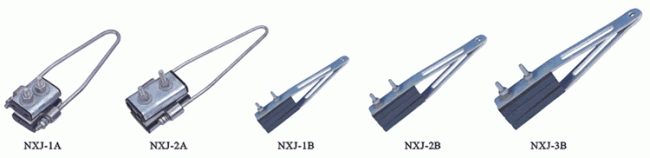

Four-cores-cenrtalized strain clamp(Type NXJ-A,NXJ-B)

Price Negotiable
Price: Negotiable
MOQ: 100pcs
Delivery Time: 10-15days
Brand: LKS
Product Description



●Application:
NXJ four-core-centralized strain clamp is suitable for the end of aerial wire terminal, it’s action is fixing or tighten the insulation conductor, the products type has NXJ-A and NXJ-B
● Performance:
The clamp has designed four core parallel groove, after clamping the four insulation conductor(not remove the insulation layer )tighten up the bolt, have large grip strength.
●Specification
Type
Applicable conductor (mm2)
Grip strength (kN)
NXJ-1A
16-50
11.7
NXJ-2A
70-120
17.3
NXJ-1B
25-50
11.7
NXJ-2B
70-120
17.3
NXJ-3B
150-185
22.5
