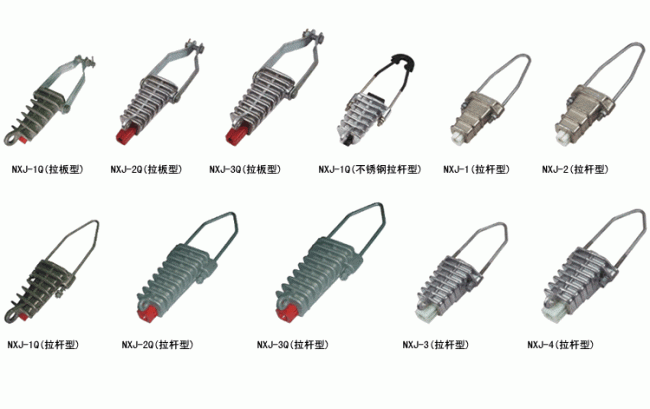

Insulation strain clamp( NXJ-Q and NXJ series)

Name: Insulation strain clamp( NXJ-Q and NXJ series)
Brand: LKS INDUSTRIAL CO.,LIMITED

Price Negotiable

Price: Negotiable

MOQ: 100PCS

Delivery Time: 10-15days

Brand: LKS

Product Description

Application

NXJ Series is suitable for strain clamp insulation string of 10kV aerial insulation aluminium core wire JKLYJ terminal or two ends fixing and tighten aerial insulation

● Structure feature

1,The shell made of anti-oxidate high strength aluminum alloy.

2,The core of wedge made of insulating reinforce plastics, withstand voltage : ≥18kV not breakdown one min.

3,Not remove the insulation layer,AI-core wire are current use.

4,Without waste power

5,Wedge structure

●Specification

Type	Conductor Specification(mm2)	Aerial insulation aluminium conductor/1kV	Aerial insulation aluminiumconducor/10kV	Grip strength(kN)	Failure load (kN)
Type	Conductor Specification(mm2)	O.D for conductor(mm)	O.D for conductor(mm)	Grip strength(kN)	Failure load (kN)
NXJ-1Q	25	8.4	14.8	2.5	10.5
	35	9.8	15.8	3.4
	50	11.2	17.1	4.6
	70	12.8	18.8	6.7
NXJ-2Q	50	11.2	17.1	4.6	34.7
	70	12.8	18.8	6.7
	95	14.8	20.4	8.9
	120	16.2	21.8	11.3
NXJ-3Q	120	16.2	21.8	11.3	43.4
	150	18.2	23.4	13.6
	185	20.2	25.0	17.3
	240	22.6	27.2	22.5

Type	Conductor Specification(mm2)	Aerial insulation aluminiumconductor/1kV	Aerial insulation aluminiumconductor/1kV	Grip strength(kN)	Failure load (kN)
Type	Conductor Specification(mm2)	O.D for conductor(mm)	O.D for conductor(mm)	Grip strength(kN)	Failure load (kN)
NXJ-1	35	9.8	15.8	3.4	13.7
NXJ-1	50	11.2	17.1	4.6	13.7
NXJ-2	70	12.8	18.8	6.7	34.7
NXJ-2	95	14.8	20.4	8.9
NXJ-3	120	16.2	21.8	11.3
NXJ-3	150	18.2	23.4	13.6
NXJ-4	185	20.2	25	17.3	43.4
	240	22.6	27.2	22.5
	300		29.4	28.2
