Copper-Aluminum connecting terminals (Type DTL)
Copper-Aluminum connecting terminals (Type DTL)
DTL series Al-Cu connection terminal is suitable for transition joint of distribution device aluminum core cable and electric equipment.DL aluminum is used for aluminum terminal linking of aluminum core cable and electric equipment.DT copper terminal i
s used for copper terminal electric equipment.DT copper terminal is used copper terminal linking of copper core cable and electric equipment,The products adopt friction welding workmanship,It has advantage of good electric conductance,electrochemlcal corrosion resistance,long service life.

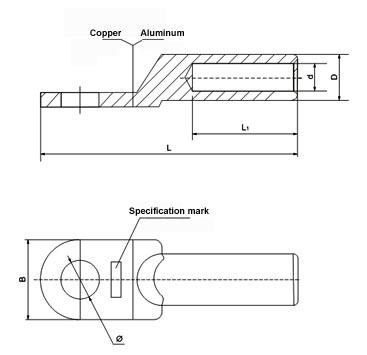

Item No. | Dimensions(mm) | |||||
φ | D | d | L | L1 | B | |
DTL-16 | 8.5 | 10 | 6.2 | 70 | 32 | 16 |
DTL-25 | 8.5 | 12 | 7 | 75 | 34 | 18 |
DTL-35 | 10.5 | 14 | 8.5 | 85 | 40 | 20.5 |
DTL-50 | 10.5 | 16 | 9.5 | 90 | 42 | 23 |
DTL-70 | 12.5 | 18 | 11.5 | 102 | 47 | 26 |
DTL-95 | 12.5 | 21 | 13.5 | 112 | 50 | 28 |
DTL-120 | 14.5 | 23 | 15 | 120 | 53 | 30 |
DTL-150 | 14.5 | 25 | 16.5 | 126 | 55 | 34 |
DTL-185 | 16.5 | 27 | 18.5 | 133 | 58 | 37 |
DTL-240 | 16.5 | 30 | 21 | 148 | 60 | 40 |
DTL-300 | 21 | 34 | 23 | 165 | 65 | 50 |
DTL-400 | 21 | 34 | 26.5 | 170 | 70 | 50 |
DTL-500 | 21 | 42 | 29.5 | 190 | 75 | 60 |
DTL-630 |
| 54 | 34 | 225 | 80 | 80 |
DTL-800 |
| 60 | 38 | 270 | 90 | 100 |
