DTGA type Spy hole copper connecting terminals(SC Terminal)
Price:
Negotiable
MOQ:
1000pcs
Delivery Time:
7-10days
Product Description
DTGA type Spy hole copper connecting terminals(SC Terminal)
Specification

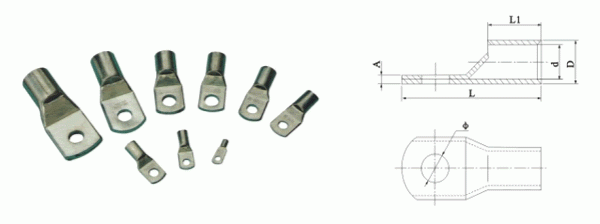

Item No. | Dimensions(mm) | |||||
D | d | φ | L | L1 | A | |
SC-4 | 4.8 | 3.8 | 6.2 | 21 | 6.4 | 1.0 |
SC-6 | 5.5 | 3.8 | 6.2 | 24 | 9 | 1.3 |
SC-10 | 6.8 | 4.8 | 6.2 | 25.5 | 10 | 2.0 |
SC-16 | 7.5 | 5.5 | 8.2 | 30.5 | 12 | 2.0 |
SC-25 | 9.0 | 7.0 | 8.2 | 34 | 14 | 2.0 |
SC-35 | 10.5 | 8.2 | 10.5 | 38 | 14 | 2.0 |
SC-50 | 12.5 | 9.8 | 10.5 | 45 | 18 | 2.8 |
SC-70 | 14.5 | 11.5 | 12.5 | 50 | 18.6 | 3.0 |
SC-95 | 17.5 | 13.8 | 12.5 | 55.5 | 23.5 | 4.0 |
SC-120 | 19.5 | 15.5 | 12.5 | 63 | 24 | 4.0 |
SC-150 | 20.5 | 16.5 | 16.5 | 71 | 31 | 4.0 |
SC-185 | 23.5 | 18.8 | 16.5 | 78 | 33 | 4.6 |
SC-240 | 26.5 | 21 | 16.5 | 92 | 40 | 5.0 |
SC-300 | 30 | 24 | 16.5 | 102 | 47 | 6.0 |
SC-400 | 34 | 26.5 | 16.5 | 113 | 46 | 7.0 |
SC-500 | 38 | 30 | 20.5 | 123 | 50 | 8.0 |
SC-630 | 45 | 35 | 20.5 | 135 | 58 | 10.0 |
