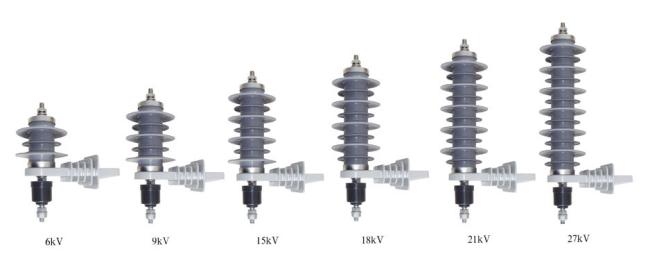

Antipollution Housed lightning arrester without Gaps Nominal Discharge Current 5KA
Antipollution Housed lightning arrester without Gaps Nominal Discharge Current 5KA
Specification
Type | Rated Voltage | Maximum Continuous Operating Voltage | Current impulse residual voltage | 2ms Rectangular current impulse withstand | 4/10μs High current impulse withstand | ||
1/4μs Lightning Current impulse | 8/20μs Lightning Current impulse | 30/60μs Switching Current impulse | |||||
KV(rms) | KV(rms) | KV(crest) | KV(crest) | KV(crest) | A | KA(crest) | |
YH5W-3 | 3 | 2.55 | 11.3 | 9 | 8.9 | 150 | 65 |
YH5W-6 | 6 | 5.1 | 22.6 | 18 | 16.8 | 150 | 65 |
YH5W-9 | 9 | 7.65 | 33.7 | 27 | 23.8 | 150 | 65 |
YH5W-10 | 10 | 8.4 | 36 | 30 | 23 | 150 | 65 |
YH5W-11 | 11 | 9.4 | 40 | 33 | 30 | 150 | 65 |
YH5W-12 | 12 | 10.2 | 42.2 | 36 | 27 | 150 | 65 |
YH5W-15 | 15 | 12.7 | 51 | 45 | 38.5 | 150 | 65 |
YH5W-18 | 18 | 15.3 | 61.5 | 54 | 46.2 | 150 | 65 |
YH5W-21 | 21 | 17.0 | 71.8 | 63 | 54.2 | 150 | 65 |
YH5W-24 | 24 | 19.5 | 82 | 72 | 62 | 150 | 65 |
YH5W-27 | 27 | 22.0 | 92 | 81 | 69.8 | 150 | 65 |
YH5W-30 | 30 | 24.4 | 102 | 90 | 79 | 150 | 65 |
YH5W-33 | 33 | 27.5 | 112 | 99 | 86.7 | 150 | 65 |
YH5W-36 | 36 | 29.0 | 123 | 108 | 92.4 | 150 | 65 |
YH5W-42 | 42 | 34.1 | 132.3 | 126 | 100.1 | 150 | 65 |
