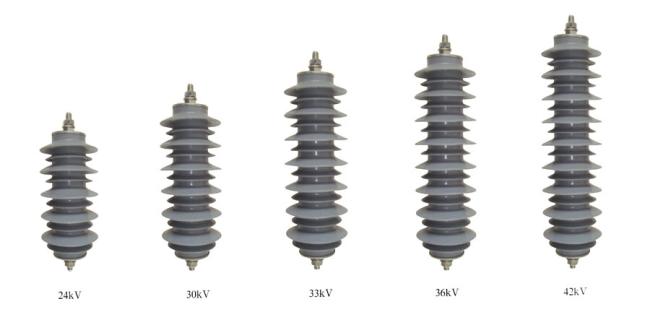

Antipollution Housed lightning arrester without Gaps Nominal Discharge Current 10KA
Antipollution Polymeric housed lightning arrester without Gaps Nominal Discharge Current 10KA
Specification
|
Type |
Rated Voltage |
Maximum Continuous Operating Voltage |
Current impulse residual voltage |
2ms Rectangular current impulse withstand |
4/10μs High current impulse withstand |
||
|
1/4μs Lightning Current impulse |
8/20μs Lightning Current impulse |
30/60μs Switching Current impulse |
|||||
|
KV(rms) |
KV(rms) |
KV(crest) |
KV(crest) |
KV(crest) |
A |
KA(crest) |
|
|
YH5W-3 |
3 |
2.55 |
11.3 |
9 |
8.9 |
250 |
100 |
|
YH5W-6 |
6 |
5.1 |
22.6 |
18 |
16.8 |
250 |
100 |
|
YH5W-9 |
9 |
7.65 |
33.7 |
27 |
23.8 |
250 |
100 |
|
YH5W-10 |
10 |
8.4 |
36 |
30 |
23 |
250 |
100 |
|
YH5W-11 |
11 |
9.4 |
40 |
33 |
30 |
250 |
100 |
|
YH5W-12 |
12 |
10.2 |
42.2 |
36 |
27 |
250 |
100 |
|
YH5W-15 |
15 |
12.7 |
51 |
45 |
38.5 |
250 |
100 |
|
YH5W-18 |
18 |
15.3 |
61.5 |
54 |
46.2 |
250 |
100 |
|
YH5W-21 |
21 |
17.0 |
71.8 |
63 |
54.2 |
250 |
100 |
|
YH5W-24 |
24 |
19.5 |
82 |
72 |
62 |
250 |
100 |
|
YH5W-27 |
27 |
22.0 |
92 |
81 |
69.8 |
250 |
100 |
|
YH5W-30 |
30 |
24.4 |
102 |
90 |
79 |
250 |
100 |
|
YH5W-33 |
33 |
27.5 |
112 |
99 |
86.7 |
250 |
100 |
|
YH5W-36 |
36 |
29.0 |
123 |
108 |
92.4 |
250 |
100 |
|
YH5W-42 |
42 |
34.1 |
132.3 |
126 |
100.1 |
250 |
100 |
|
YH5W-48 |
48 |
39 |
152 |
150 |
126 |
400 |
100 |
|
YH5W-54 |
54 |
43 |
171 |
162 |
139 |
400 |
100 |
|
YH5W-60 |
60 |
48 |
208 |
180 |
160 |
400 |
100 |
|
YH5W-66 |
66 |
52.8 |
230 |
198 |
172 |
400 |
100 |
