50 Ton Battery Powered Flat Electric Transfer Cart Heavy Duty Easy To Operate
Price:
USD 2800~7500SET
MOQ:
1 set
Delivery Time:
20 work days after received balance payment
Brand:
battery powered flat electric transfer cart
Product Description

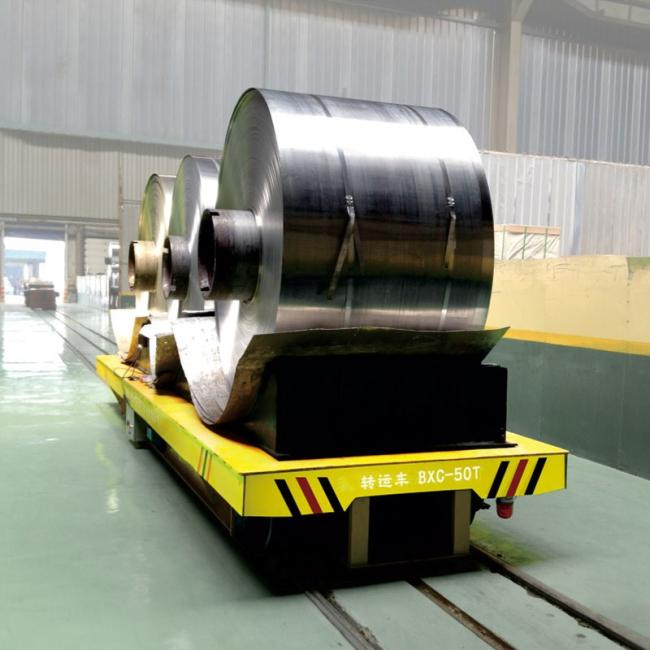

50 Ton Battery Powered Flat Electric Transfer Cart Heavy Duty Easy To Operate
This battery powered flat electric transfer cart is usually used at ship yard, plant and factory, certain production line. The coil handling battery cart could get power from outside or from the battery. The battery powered flat electric transfer cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. The battery powered flat electric transfer cart construction is based on our world renowned die coil handling battery powered flat electric transfer cart and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our The battery powered flat electric transfer cartis available in a number of configurations specifically designed to suit the needs of our customers.
Site map for customer use
Site map for customer useSite map for customer useail Trailer Rail Trailer
Technical Parameter of battery powered flat electric transfer cart
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
