Sinotruk HOWO 35.5m3 LPG Tanker Truck , LPG Gas Delivery Truck For Cooking Gas
Price:
USD12000~18000/Unit
MOQ:
1 Unit
Delivery Time:
15-20 work days
Product Description
Sinotruk HOWO 35.5m3 LPG Tank Truck LPG Gas Delivery Truck LPG Gas Tanker Trucks
Technical Specifications
| Cabin | Sinotruk Hw76 Cabin ,left hand drive, with air conditioner3 Passengers Allowed |
||||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 11980×2500×3690 | |||
| Wheel base (mm) | 1900+4350 +1350 | ||||
| Wheel track (front/rear) (mm) | 1900 /1800 | ||||
| Approach/Departure angle(°) | 38/18 | ||||
| Weight in KGS | Tare Weight | 14000 | |||
| Payload | 10000 | ||||
| Front axles loading capacity | 2x7000 | ||||
| Rear axles loading capacity | 2x16000 | ||||
| Max. driving speed(km/h) | 90 | ||||
| Engine | Brand | Sinotruk | |||
| Model | WD615.47 | ||||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||||
| Horse Power(HP) | 371 | ||||
| Displacement (cc) | 7200 | ||||
| Emission standard | Euro II | ||||
| Gearbox | 10 forwards & 2 reverse | ||||
| Steering | Left hand driven | ||||
| Tire | 10.00-20 nylon tires with one spare ,11 pieces totally | ||||
| LPG Tank System | Volume of tank:35.5 CBM Filling Medium: Liquefied Petroleum Gas (propane) Medium Density:420-590 kg/ cbm Design Temperature(ºC):Under 50ºC Water Pressure Test(MPa) : 2.1 Mpa / 21 Bar Design Pressure(MPa): 1.61 Mpa / 16.1 Bar Corrosion Allowance(mm): 1mm Tank Material: Q345R high tension steel, 10 mm Thick Tank Body. With filling system , hydraulic pump ,hydraulic motor,lpg pump , meter, filling hoses , filling nozzle. Main Accessories: Safety Valve DN100,Emergency Cut-off Valves, DN25 for gas phase,DN50 for liquid phase;Ball Valves,DN25 for gas phase, DN50 for liquid phase;Liquid level meter, Pressure gauges,Temperature Gauge, Valve Box. |
||||

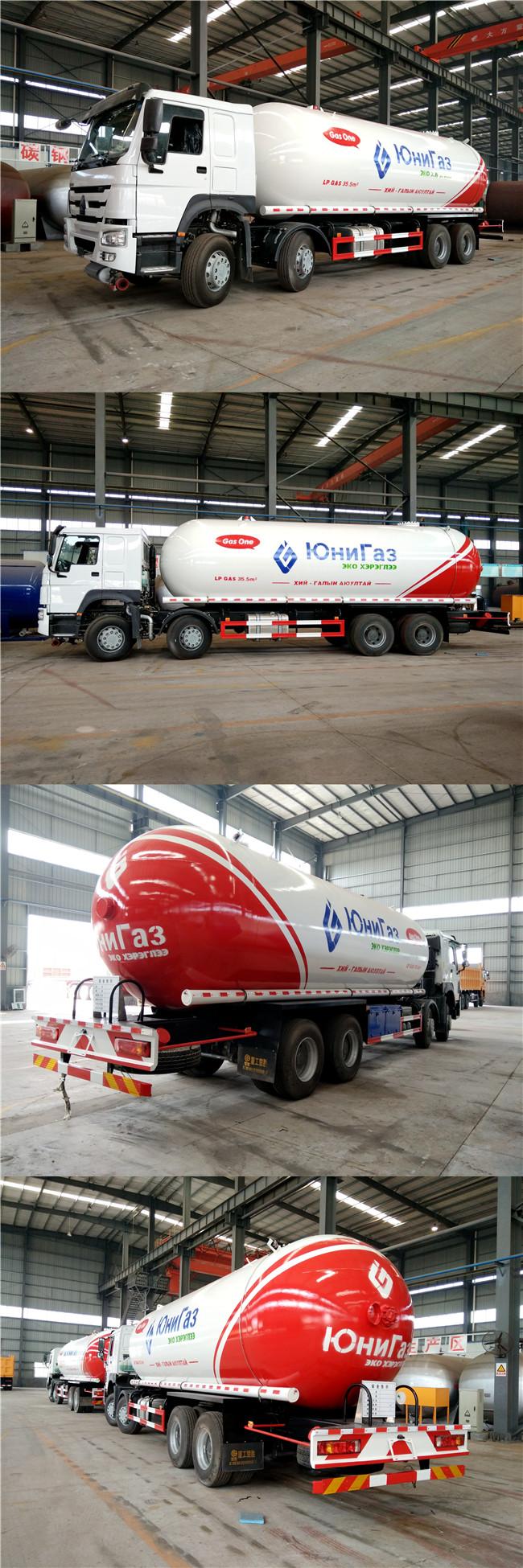

LPG Tank Truck
Relevant Products
Our Payment terms and delivery time:
1. TT or LC AT SIGHT 30% down payment, 70% balance paid before shipment,all by T/T or by 100% LC at sight. Min order: 1 units
Delivery time: 15-20days after get the deposit or LC
Packing: nacked package, waxed before delivery by sea.
Documents: B/L, Commercial invoice, Packing list, Certificate of origin etc
