SINOTRUK HOWO Dump Truck Trailer 6 * 4 336hp 30 Tons 10 Wheeler CCC Approved
SINOTRUK HOWO 6X4 30ton dump truck 3 axles 30T zipper truck for sale
Brand: SINOTRUK HOWO
Other brand available: Dongfeng, HOWO, FORLAND, SHACMAN, FAW etc.
Loading capacity:30tons
Other loading capacity for optional: 5ton, 10ton, 15ton, 20ton, 25ton, 30ton, 40ton
Driving type: 6x4 left hand drive / right hand drive
Ohter type: 6x4, 10 wheels, 10 wheeler, 8x4, 12 wheels, 12 wheelers
SINOTRUK HOWO 6X4 30ton dump truck parameters:
| Item No. | Parameters |
| Overall Dimension | 8945x2496x3400 mm |
| Gross Vehicle Weight | 37650 kg |
| Curb weight | 12650 kg |
| Loading capacity | 25000 kg |
| Front axle loading capacity | HF9, 1x9000 kg |
| Rear axle loading capacity | HC16, 2x16000 kg |
| Max Driving Speed | 75 km/h |
| Engine | WD615.69, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Engine horsepower | 336hp |
| Emission Standard | Euro II |
| Displacement | 9.726L |
| Gear Box | HW19710, 10 Forwards gear & 2 reverse gear |
| Steering Gear | ZF 8098, power steering, hydraulic steering with power assistance |
| Clutch | Reinforced diaphragm clutch, diameter 430mm |
| Fuel Tank | 400L Aluminum alloy fuel tank |
| Cabin | HOWO 76 Standard Cab, Right hand drive Two seats with 1 sleeper, with air conditioner, 70° hydraulically tillable to the front. |
| Tire | 12R22.5 Tubeless Tire , 10 pieces with one spare |
| Brake |
Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
| Dump Body Size |
Size: 5400x 2300 x 1300mm, 16.15m3. Q345/B High Tension Steel Dump Body, Steel Thickness: bottom 8mm, side & front 6mm, |
| Tipping hydraulics | Middle Tipping, Complete set of Chinese famous Brand Hydraulics System |

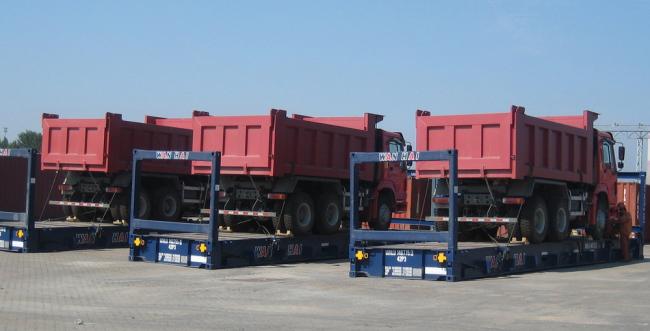

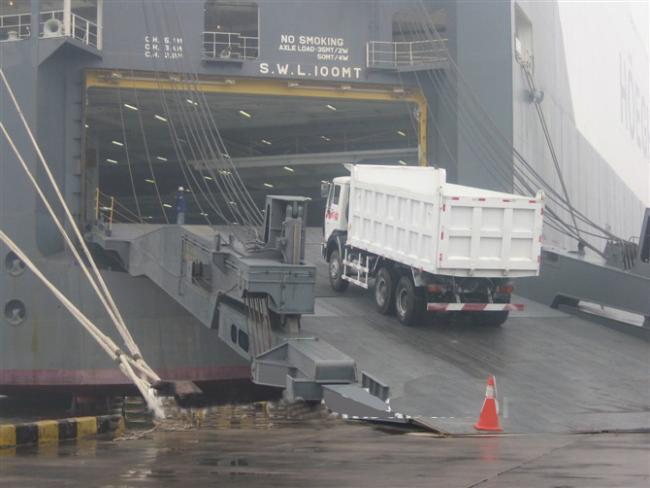

SINOTRUK HOWO 6X4 30ton dump truck photos:

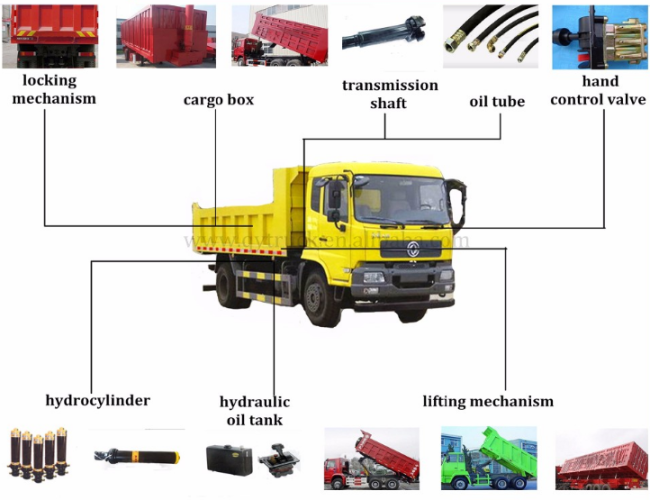

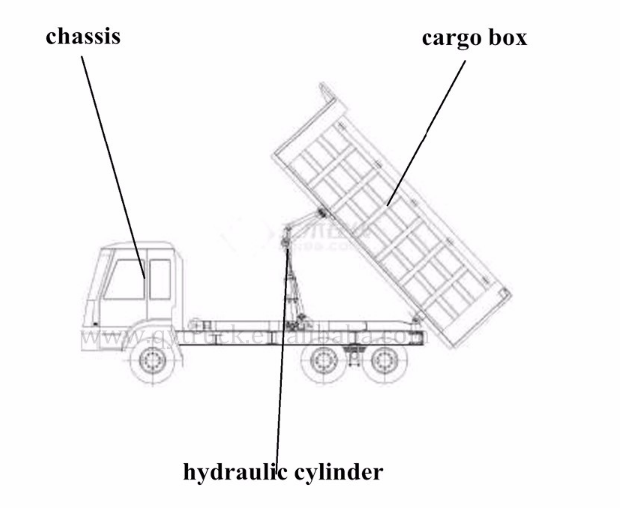

SINOTRUK HOWO 6X4 30ton dump truck detailed images:
