4X2 Small Flatbed Tow Truck 3 Ton 2 Axles 6 Wheels For Sinotruk HOWO CCC Approved
HOWO 4X2 flatbed 3ton wrecker truck 2 axles 6 wheels tow truck HOWO 4X2 Small Flatbed 3ton Wrecker Truck 3 tons Flatbed Towing Truck 6 wheels Flatbed Tow Truck
Brand: SINOTRUK HOWO
Other brand available: Dongfeng, HOWO, FORLAND, SHACMAN, FAW etc.
Loading capacity:3tons
Other loading capacity for optional: 5t, 8t, 10t, 12t, 15t, 20t, 25t, 30t
Driving type: 4x2 left hand drive / right hand drive
Ohter type: 4x2, 6x4, 8x4 ,light duty, heavy duty
- What is wrecker truck ?
Wrecker truck is also called tow truck, recovery truck, wrecker,road emergency vehicle,wrecker truck has the function of lifting, pulling and traction.
- What's the usage of wrecker truck ?
Wrecker is mainly used for road failure vehicles, urban vehicles and emergency rescue and other violations.
HOWO 4X2 flatbed 3ton wrecker truck photos:
HOWO 4X2 flatbed 3ton wrecker truck parameters:
| Vehicle | HOWO wrecker tow truck | |
| Overall dimension | mm | 7470×2350×2440 |
| Flatbed dimension | 5550×2300 | |
| Curb weight | kg | Appro×4910 |
| Flatbed loading weight | Appro×4000 | |
| Carriage arm loading weight | Appro×3000 | |
| Wheel base | mm | 3800 |
| Front/Rear overhang | 1210/2460 | |
| Approach/departure angle | ° | 24/10 |
| Standard configuration | 1) 4 tons winch 1 set | |
| 2) Auxiliary wheel 2pcs | ||
| 3) Rear towing arm assembly 1 set | ||
| 4) Drag the fork 1set | ||
| 5) Steel wire rope 25m | ||
| 6) Bunding belt 2pcs | ||
| 7) Accessory tool 1set | ||
| Working Performance |
1. It can tow two cars. 2. Hydraulic control flatbed and carriage arm,with hydraulic operation lever. 3. Winch speed : 8m/min. 4. Flatbed working stroke: 2680mm 5. Flatbed minimum tilt angle: 10° 6. Carriage arm telescopic stroke: 1180mm 7. The max effective length of the arm: 1300mm |
|
Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
The tow truck wrecker can hoist, lift, draw and be with other special functions, mainly used in highway and city road obstacle cleaning.
Our one tow two wrecker truck which called flatbed tow truck can also deal with 2 sets of accident vehicles, upper back down tow, and mainly used within 3 tons of cars.
Equipped with 3 ton to 5 ton lift equipment, bind belt, auxiliary wheel, J type of hook, winch, electronic lamp, 20M steel wire, megaphone,etc
As a professional tow truck manufacturer, the wrecker tow truck we produce is from 3 ton to 60 ton. The road wrecker truck we manufacture are flatbed tow truck, under lift wrecker truck, rotator tow truck, tow truck mounted crane,etc.

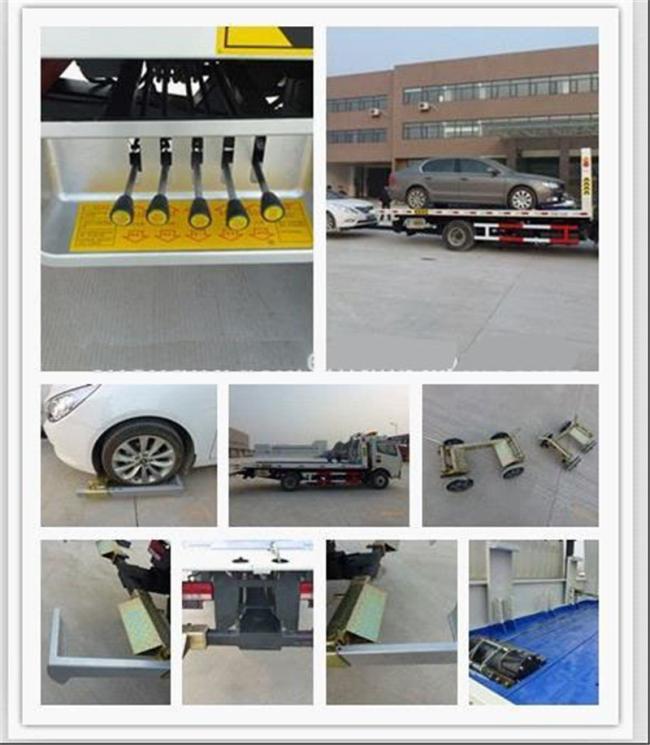

HOWO 4X2 flatbed 3ton wrecker truck detailed images:
