5 - 120M3 LPG Tanker Truck , LPG Bulk Tank For Transport CCC Certified

Price Negotiable

Price: Price negotiable

MOQ: 1 Unit

Delivery Time: 15-30 work days

Product Description

5-120M3 LPG Tanker LPG Bulk Tank LPG Tank Bulk Liquid Gas Tank

Part 2. LPG Tank Technical Parameters:

Item		Unit	Parameter

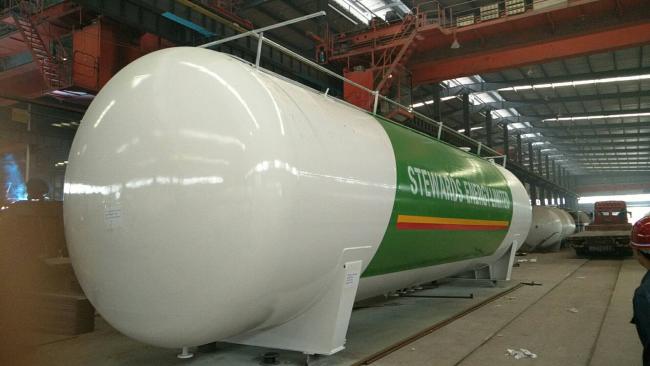

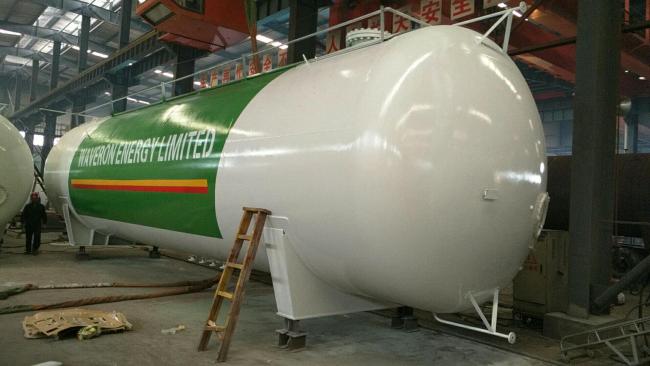

Product Name			Liquefied Gas Storage Tank
Brand Name			ChengLiWei
Model			CLG3200-120
Overall dimensions		mm	TBD
Tank Dimension			DN32001813800(inner diathicknesslength)
Fact cubage		m3	120
Fact loading weight		T	60
Tank weight			22.8
Working pressure		Mpa	≤1.6
Testing hydraulic pressure			2.12
Testing pressure for gas density			1.77
Test pressure			1.69
Air tight test pressure			1.69
Safety valve popping pressure			1.68
Working temperature		ºC	≤50
Other		Tank material: 16MnR,; pressure relief valve model: HG20592-WN, open pressure: 1.68-1.76Mpa; LPG density: 0.42t/m3 . Mark dangerous caution on tank. Pressure pump with connect valve: Import filter valve, inlet cut-off valve, outlet cut-off valve, export check valve
color		According to customer's requirement
Nominal Diameter	Connect surface			Name	Pipe dimension	extension elongation
3"	RF			Liquid inlet		150
3"	RF			Liquid outlet		150
3"	RF			gas phase outlet		150
2"	RF			Air vent		150
3"	RF			Drain		150
4"	RF			Level gauge
M27*2	thread			Thermometer		40
M20*1.5	thread			Pressure gauge		40
18"	FM			Manhole		220
4"	RF			Safty valve		150
