Euro II Dongfeng Garbage Compactor Truck 6 Wheels 4cbm For Household Waste
Euro II Dongfeng 6 wheels compressor garbage truck 4cbm garbage compactor truck
Descripition of compactor truck
Garbage Compressor Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck,self-loading garbage truck, sealed type garbage truck.
Technical Specifications of compactor truck
| Model | CLW5110ZYSA |
| Chassis Model | EQ1110 |
| Driving Type | 4x2 |
| Cab ( NEW and Left hand drive ) |
Dongfeng 153, Air-condition
|
| Engine Model | B210 HP EUROⅡ |
| Engine describe | In-line,water cooled,six cylinder , four stroke with turbo charger |
| Engine Power | 210 hp |
| Engine Output | 213/2300(KW/r/min) |
| Displacement | 5.9 L |
| Transmission | 6 forward &1 reverse with PTO) |
| Steering | ZF8118 |
| Front Axle | Max.loading:5000kg |
| Rear Axle | Max.loading:10000kg |
| Wheelbase | 4200 mm |
| Tires | 10.00R20 Radial |
| ABS | Without |
| Fairing | Without |
| Max. Speed | 75(km/h) |
| Gross Vehicle Weight | 16000 (kg) |
|
Estimated Overall Dimensions (L×W×H) |
8100x2550x3600(mm) |
| Color | cab body |
| Pressure of Hydraulic System | 20(MPa) |
| Body Volume | 8-12(m3) |
| Body Material | Q345A |
| Body Control | Electric and manual control |
| Compaction ratio | 6:1 |
| Manipulator | Double square type garbage bucket |
| Filler Volume | 2.0(m3) |
| Cycle Time of Filling | ≤25(s) |
| Lifting Time of Filler | 8-10(s) |
| Time of Discharging | ≤40(s) |
| Front/Rear Sewage Tank volume | 250+150(L) |
| Max. Compression Force | >25000(kg) |
| Control system | Manual + Automatic |
| Main Characteristic |
1,It can choose 240L(single bin, double bins)or 360L,660L,1100L standard bin lifting and turnover mechanism, can also choose ground hopper and other kinds of loading mechanism. 2, With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. 3, With working device of emergency braking stop button. 4,Garbage body use frame design, elegant, strong structure, large effective capacity. 5,Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks. 6,Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more than 600~800kg/m3 after compression. |

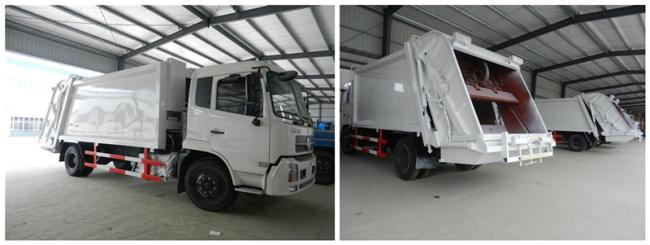

Photo show of compactor truck
