SINOTRUK HOWO 6X4 Garbage Compactor Truck 16 cbm 10 Wheels For Waste Collect
SINOTRUK HOWO 6X4 16cbm garbage compactor truck 10 wheels compactor truck
Technical Specifications
|
Production name |
HOWO compactor garbage truck 16cbm |
|
Chassis model |
ZZ1257N4647C |
|
Type |
6×4, Right/Left hand drive |
|
Weights |
|
|
Related weight (kg) |
30000 |
|
Curb weight (kg) |
14000 |
|
Dimensions |
|
|
Wheelbase(mm) |
4600+1350 |
|
Overall Dimension(mm) |
10100×2500×3400 |
|
Box dimension (mm) |
16m3 |
|
Max speed(km/h) |
90 |
|
Engine |
|
|
Engine model |
WD615 (336HP) |
|
Engine type |
4 stroke water-cooled, inter-cooling |
|
No of cylinder |
straight-6 cylinders |
|
Displacement(L) |
9.726L |
|
Max power(kw) |
249kw |
|
Drive Line |
|
|
Transmission |
HW13710CL |
|
10 speeds,10 forwards,2 reverse gear,manual operation |
|
|
Steering |
ZF8098 Power steering |
|
Cab |
|
|
Cabin |
HW76 cab |
|
Configuration standard |
Air conditioner ,and so on |
|
Axles |
|
|
Front axles |
HF7 |
|
Rear axles |
MCY13 |
|
Tire specification |
|
|
Tire |
12.00-20 standard tire,10 tires+1 spare tire |
|
Specification of compactor garbage truck |
|
|
Box valume |
16m3 |
|
Box material |
Side 4mm,bottom 5mm |
|
Sewage tanker |
200L |
|
Fill volume |
1.2cbm |
|
Loading time |
20-30S |
|
The cycle time of the loading |
50-60S/per turn |
|
Unloading model |
Dump |
|
Unloading time |
40-50S |
|
Hydraulic system pressure |
16Mpa |

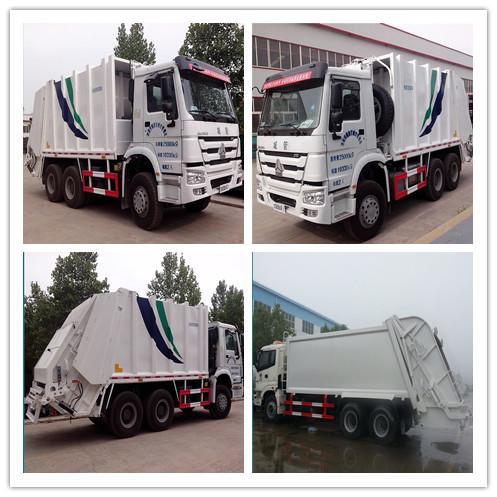

Photo show
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
It depends on your order. The delivery time is within 25 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
Yes, we offer customized logo for any type.
