Heavy Duty HOWO 6x4 Tanker Truck Trailer 20000L 20cbm For Transporting Oil
Heavy duty Sinotruk HOWO 6x4 18CBM~20CBM Fuel Tank Truck 18000L-20000L Oil Transport Truck, Beiben 10 wheeler 20000 liters oil tank / transport truck 20000 liters fuel tanker truck for sale
We are factory selling, factory producing with reliable quality, and cheap price.
Oil tanker truck, fuel tanker truck, petroleum tanker truck, which are mainly used for transporting oil.

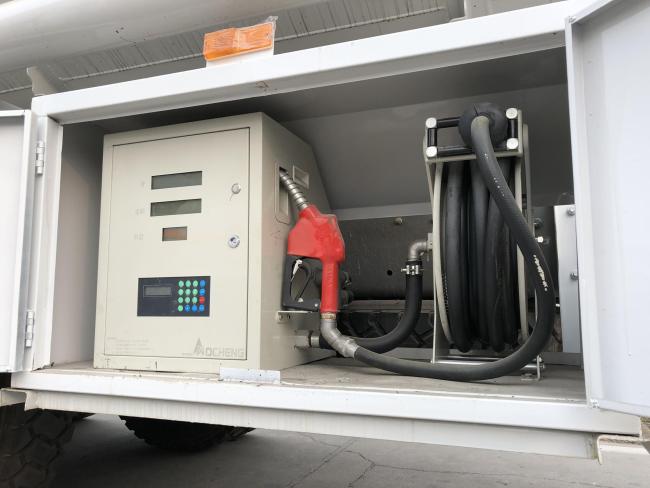

some oil tanker truck could be also a refueling tank truck, with refueling device.
Our company also produce the oil tank trailer,the manufactuere standard could be according to European standard.
API device.
Currently our company produce the oil tanker truck form 3000~ 35000 liters
Oil tank trailer from 40000~70000 liters.
The specification of Sinotruk HOWO 6x4 18M3 - 20M3 fuel tanker truck 18000L - 20000L oil transport tanker truck 18cbm - 20 CBM fuel tank truck
| Cabin | Driving type 6x4 LHD | |
|
HOWO 76 Standard cab, with two bunks, one bed, air-condition, 70°hydraulically tillable to the front as attached photo for ref.
|
||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 9500x2496x3600 |
| Wheel base (mm) | 4300+1400 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Approach/Departure angle(°) | 16/15 | |
| Weight in KGS | Tare Weight | 11030 |
| Rated loading Capacity | 13840 | |
| Front axles loading capacity | 1x7000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | Sinotruk |
| Model | WD615.47 | |
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 371HP | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710, 10 forwards & 2 reverse | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 400 | |
| Tire | 295/80R22.5 tubeless tire, | |
| Brakes |
Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
| Tanker Body | ||
| Volume | 20CBM | |
| Thickness | Tanker body: 5mm, End plate: 6mm | |
| Independent compartment | 2 independent compartments | |
| Aluminum alloy API manhole cover, DN500mm, 2 sets with 2 breather valve | ||
| 2 sets of DN100mm discharging valves | ||
| 4” rubber hose, 2 pcs, 6m long | ||
Oil tanker truck is also called Fuel Tanker Truck, petrol delivery truck, diesel hauling trucks, crude oil transport trucks, oil tank trailer, fuel tanker semi trailers, mobile oil tank trucks, etc., is used to transport or refuel oil, petrol, diesel, lubricant, crude oil and some chemical liquid, etc.
