Vacuum Sewage Tanker Truck Trailer 10 Wheels 16000L For Sinotruk HOWO
Sinotruck HOWO 6x4 10 wheels 16M3 Vacuum Sewage Tank Truck 16000L Sewage Suction Truck, Sinotruck HOWO 6x4 16000L / 16m3 / 16cbm Vacuum Sewage / fecal Suction Truck, fecal suction truck.
A sewage suction truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of sewage suction trucks with capacities ranging from 2cbm to 18cbm.
Our factory could produce different brand like Sinotruk HOWO, FOTON, DONGFENG, FAW etc with different sizes ranged from 3000Liters to 16000Liters as well as big size sewage suction trailers.
| Cabin | HW76 With two bunks, one bed.70° hydraulically tillable to the front as attached photo for ref. | The pictures are just for your reference, we can do and design for your reference | |||
| Vehicle Main Dimensions | (L x W x H)mm | 9120x2500x3600 | |||
| Wheel base (mm) | 4300+1400 | ||||
| Wheel track (front/rear) (mm) | 2022/1830 | ||||
| Approach/Departure angle(°) | 16/23 | ||||
| Weight in KGS | Tare Weight | 12050 | |||
| Loading Capacity | 12950 | ||||
| Front axles loading capacity | 1x7000 | ||||
| Rear axles loading capacity | 2x16000 | ||||
| Max. driving speed(km/h) | 90 | ||||
| Engine | Brand | SINOTRUK | |||
| Model | WD615.62 | ||||
| Horse Power(HP) | 266HP | ||||
| Emission standard | EuroⅡ | ||||
| Gearbox | HW19710, 10 forwards & 2 reverse | ||||
| Steering Gear | ZF8098,power steering, hydraulic steering with power assistance | ||||
| Fuel tank (L) | 400 | ||||
| Tire | 12 R22.5 tubeless tire , 11 pieces | ||||
| Brakes |
Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||||
Tank Body
| Sewage body capacity | 16.5m³ | |
| Tanker Body Material | 6mm steel / Q235 high tensile strength steel | |
| End plate | 6mm steel sheet/Q235 high tensile strength steel | |
| Discharging Pipe | 4”rubber hose, 2 pcs, 3m long | |
Vacuum pump
| Type | 50QZDG-45/400 |
| Speed | 500 r/min |
| Absolute working pressure | 400 Pa |
| Theoretical pumping rate | 45 L/s |
| Shaft power | 4 KW |
| Characteristic | Low speed, low fuel consumption, low noise, high efficiency, high vacuum |

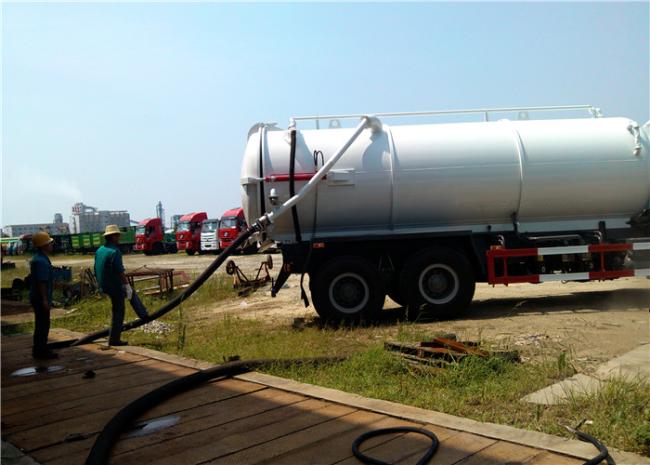

More detailed pictures for HOWO sewage suction truck, sewage suction tank truck.
