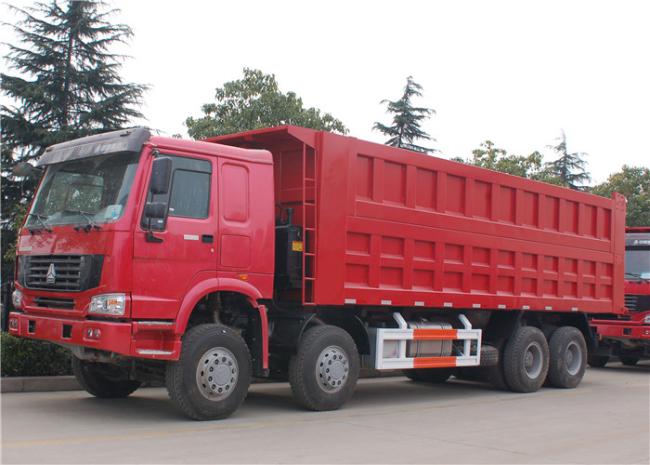

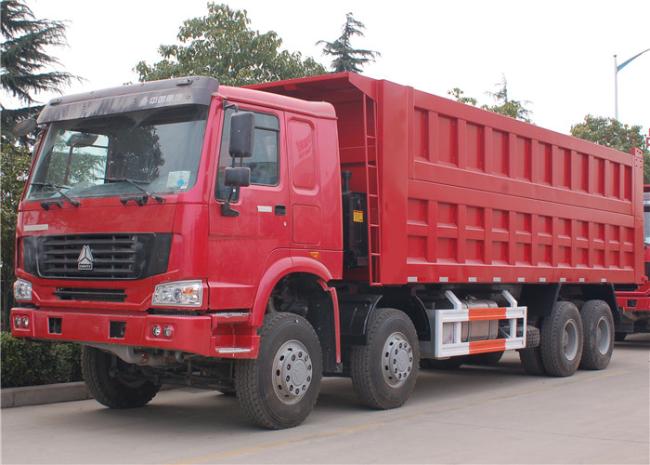

12 Wheeler HOWO 8x4 Dump Truck 50 Ton 40 Ton Large Capacity 3 Axles ISO 9001 Certified
Heavy Duty Sino truck HOWO 12 wheeler 40t tipper truck 50 tons dump truck , Heavy duty Sinotruck HOWO 8x4 371hp dumper truck 40 tons tipper truck 50T dump truck, 12 Wheels HOWO 8x4 Dumper Truck 25M3 40 Ton Tipper Truck Dump Truck
Product features:
Brand SINOTRUK: HOWO A7, HOWO, HOVA, SWZ, STEYR, HOKA, Yellow River, etc
Series: cargo truck, dump truck, tractor truck, special truck, bus, etc
Driving type: RHD, LHD
Engine:with STEYR, MAN technology
Emission: EURO II, III, IV, V
1, Oil Saving, Safety, Driving comfort, Reliability, Low application cost
2, Engine, Sinotruk WD615.47, 371HP or WD615.87, 290HP / WD615.69, 336HP, D12.42, 420HP. German Man technology.
3, T-type pr Front tipper. Tipper body: Square shape or U-shape.
4, Tipper body: 25cbm to 30cbm, heavy duty load capacity: 40ton to 50 ton
Floor thickness: 4mm to 8mm, Side wall whickness: 3mm to 6mm for customers' different use
5, Hydraulic system: HYVA brand or Chinese famous brand.
6. Cabin: with one sleeper bed, with two sleeper bed, Air Conditioner.
| Cabin | Driving type , 8x4, Left hand drive. | |
| HW76 standard cab, with one sleeper bed and A/C, 70°hydraulically tillable to the front as attached photo for ref. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245×2496×3386 |
| Wheel base (mm) | 1800+3500+1350 | |
| Wheel track (front/rear) (mm) | 2020/1800 | |
| Approach/Departure angle(°) | 19/18 | |
| Weight in KGS | Tare Weight | 14860 |
| Rated payload | 36000 | |
| Front axles loading capacity | HF9 2x9000 | |
| Rear axles loading capacity | AC16 2x16000 | |
| Max. driving speed(km/h) | 80 | |
| Engine | Brand | Sinotruk |
| Model | WD615.47 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 371hp | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 400 | |
| Tire | 12R22.5 Tubless Tire, 13 pieces including one spare | |
| Brakes |
Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
|
|
Dump / Tipper Body.
|
Thickness |
Side | 6mm in high tensile strength steel Q345/B |
| Front | 6mm in high tensile strength steel Q345/B | |
| Bottom | 8mm in high tensile strength steel Q345/B | |
| Dump body Size | (L x W x H) | 7300mm x 2300mm x 1500mm |
|
Tipping hydraulics |
Tipping type | front tipping type |
| Tipping system | Complete set of HYVA brand hydraulics system |
