40 Cbm Tanker Truck Trailer 20 Tons Liquefied Petroleum Tanker Trailer
LPG Cooking Gas Tank Transport Liquified petroleum tank Trailers 20tons for Bangladesh Market
Features:
1) lpg tank trailer capacity
30,000liters, 35,000liters, 40,000liters, 50,000liters, 53,000liters, 56,000liters, 59,520liters.
2) lpg tank trailer material
Q345R Q370R SA516
3) lpg tank trailers production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
4) Main parts of lpg tank trailer
Liquid phase, vapor phase, floating ball level gauge, magnetic level gauge, safety valves, cut-off valves, needle valves, pressure gauge, thermometer, fire extinguisher, 2" or 3" king pin.
5) SONCAP, BV, SGS ASME certificate for Nigeria market
Technical parameter for LPG TANK TRAILER
| 40.5 CBM LPG tank Trailer | |
| Volume of Tank (cbm) | 40.5 |
| Tare Weight (kg) | 13415 |
| Capacity (kg) | 30425 |
| Thickness of Shell (mm) | 12 |
| Thickness of Endplate (mm) | 12 |
| Nominal Diameter (mm) | 2200 |
| Wheel Base(mm) | 6720+1320 |
| External Dimensions (mm) (length×width×height) | 11324*2500*3730 |
| Tank Dimensions(mm) (Diameter×thickness×length) | 2200*12*11044 |
| Material of Tank | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas (propane) |
| Design Pressure(MPa) | 1.61 |
| Corrosion Allowance(mm) | 1 |
| Medium Density(kg/ cbm) | 420 |
| Axle | 3*13T BPW |
| Tire | 12R22.5 Tubeless tire ,9 with one spare tire |
| Landing leg | JOST Brand |

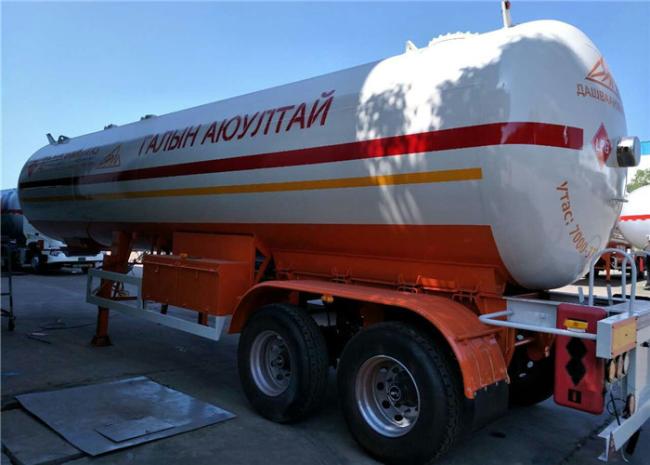

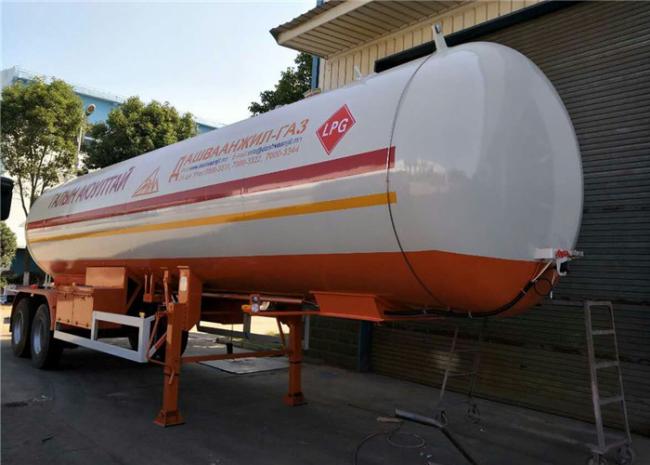

Detailed pics for lpg tank trailer

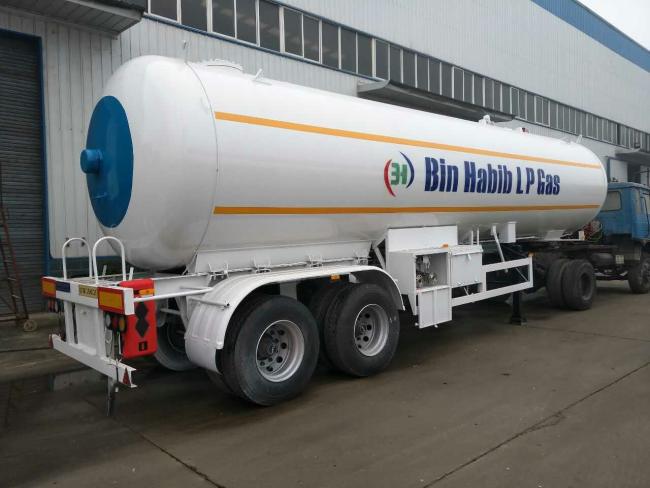

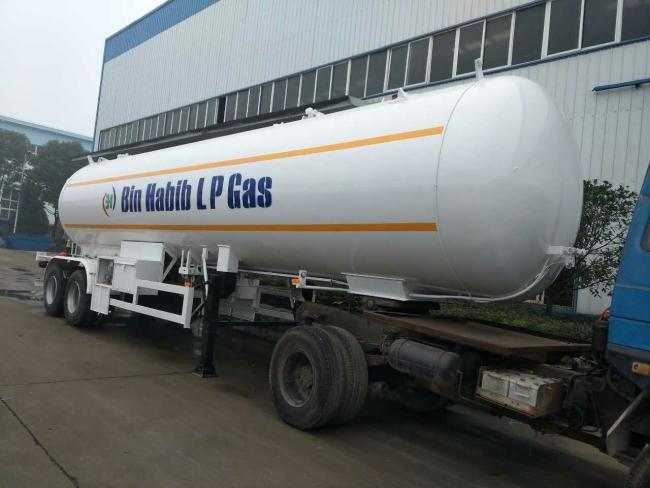

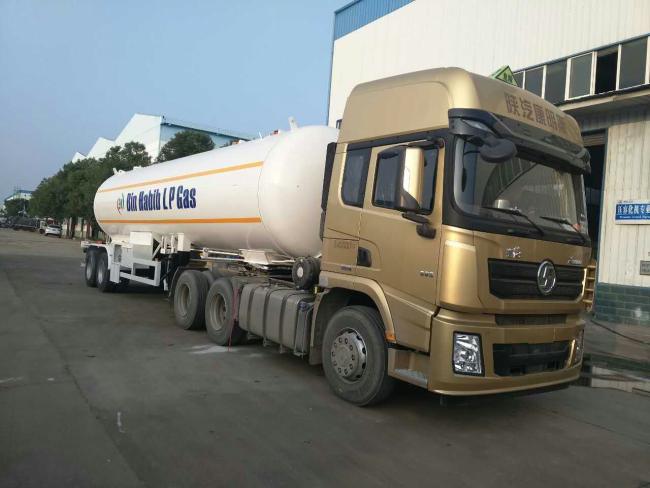

2 axle 40000L 20TONS LPG tanker trailer, LPG transport tank semi trailer exported to Mongolia.

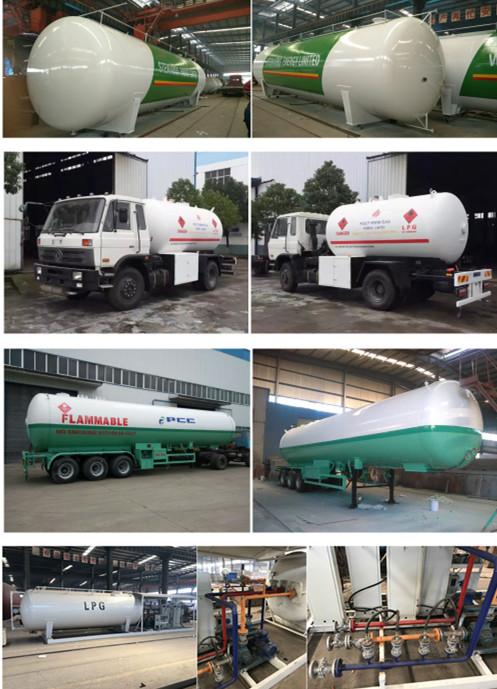

Other LPG TANK series we export:
