Forest Fire Rescue Truck 4 Tons Fire Fighting Truck , Isuzu 4x2 Foam Fire Extinguisher Truck
Forest Fire Rescue Truck 4 Tons Fire Fighting Truck , Isuzu 4x2 Foam Fire Extinguisher Truck
1.The vehicle main parameters:
| Model | Parameters | others |
| Overall Dimension | ≤8060×2500×3510mm | |
| GVW | 15560kg | |
| Engine Model | 6HK1-TCNG40 | |
| Engine Power | 177kW | |
| Wheelbase | 4500mm | |
| Driving Type | 4X2 | |
| Max.speed | 90km/h | |
| Emission Standard | 7790 ml | Euro4 |
| Passengers | 6 | |
| Fire pump rated flow | 3000L/min@1.0Mpa；250L/min@4.6Mpa | |
| water monitor rated flow | 40L/s@1.0MPa | |
| Water monitor range | ≥60m | |
| Approach angle | ≥20° | |
| Departure angle | ≥14° |
2. Fire performance parameters:
| Item Parameters | Parameters | others | ||||
| 1 | Water tank capacity | water | 4000㎏ | Built-in type | ||
| Foam tank capacity | foam | 200㎏ | ||||

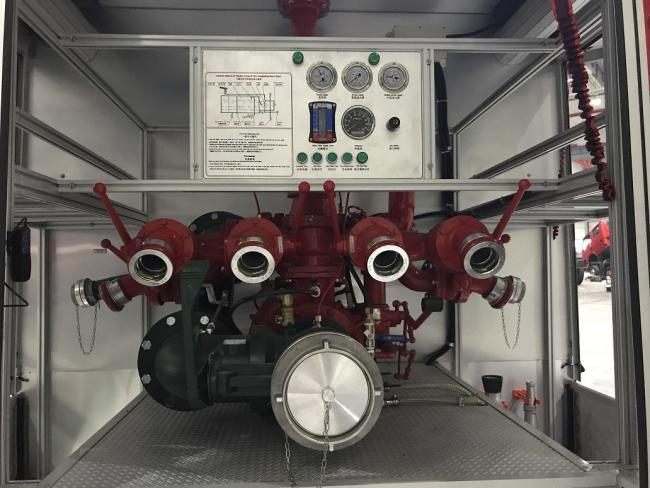

| 2 | Fire pump model | P2A | HALE(USA) | |||
| 3 | Fire pump performance | condition | Pressure1:1.0Mpa flow:3000L/min | Use vacuum pump to priming water | ||
| 4 | the installation site of fire pump | rear | ||||
| 5 | The quantity of fire pump water outlet | 6 | ||||

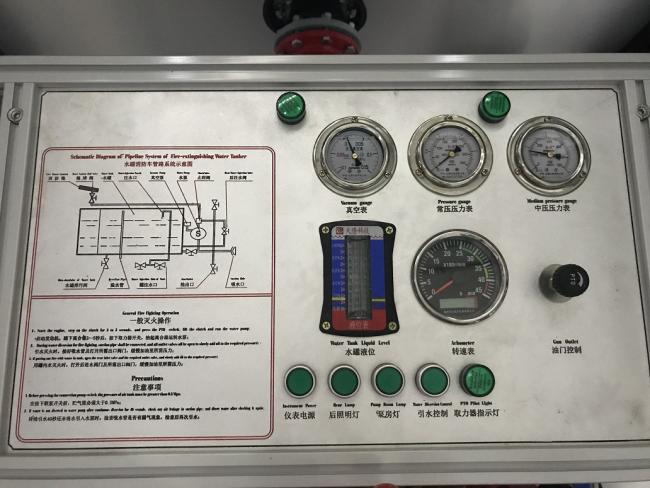

| 6 | Pressure gauge | 0-6 MPa | 2.6 level | |||
| 7 | Vacuum gauge | -0.1- -0.15 MPa | 2.6 level | |||
8 | SNAKE STUMPY 2.5/ 2400F | Flow: 40L/S | Range:60m | POK(France) | ||
| pressure | 1.0Mpa | |||||
| Depression/Elevation angle | -40-+80° | |||||
| Turning angle 360° | ||||||
1. Is your company a factory or trading Company?
We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Could you customize exactly according to my requirements?
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
3. Do you provide certification that we need?
We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
4. What service can I get from you?
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
