Shacman 4x2 6 Wheels 15000l Tanker Truck Trailer , Fuel Tank Trailer Bowser
SHACMAN 4x2 6 Wheels 15000L Fuel Tanker Truck Fuel Bowser 16000L Oil Tanker Truck
Oil tank truck also called flow bowser, computer tax-controlled tanker truck, gasoline truck, oil truck, mainly used for oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil )transportation and storage.It's made of tanks, take power device, a transmission axis, a gear oil pump, pipeline system and other parts.Four consists of oil pump, the 3-way ball valve pipe network system, two-way of ball valve, strainer, pipe.
Parameters for SHACMAN 4x2 6 Wheels 15000L Fuel Tanker Truck Fuel Bowser 16000L Oil Tanker Truck
| Cabin | Driving type 4x2 LHD | |
| SHACMAN M3000 Standard cab, with two bunks, one bed, air-condition, 70°hydraulically tillable to the front as attached photo for ref. |
||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | |
| Wheel base (mm) | ||
| Wheel track (front/rear) (mm) | ||
| Approach/Departure angle(°) | ||
| Weight in KGS | Tare Weight | |
| Rated loading Capacity | ||
| Front axles loading capacity | ||
| Rear axles loading capacity | ||
| Max. driving speed(km/h) | ||
| Engine | Brand | |
| Model | ||
| Type | ||
| Horse Power(HP) | ||
| Emission standard | ||
| Gearbox | 9JS119, 9 forwards & 2 reverse | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 400 | |
| Tire | 12R22.5 tubeless tire, | |
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
| Tanker Body | ||
| Volume | 16CBM, 16000Liters, 16M3. | |
| Thickness | Tanker body: 6mm, End plate: 6mm | |
| Tank material | Carbon Steel, Stainless steel. Aluminum Alloy for options. | |
| Independent compartment | 2 independent compartments, Customized as requirement | |
| Aluminum alloy API manhole cover, DN500mm, 2 sets with 2 breather valve | ||
| 2 sets of DN100mm discharging valves | ||

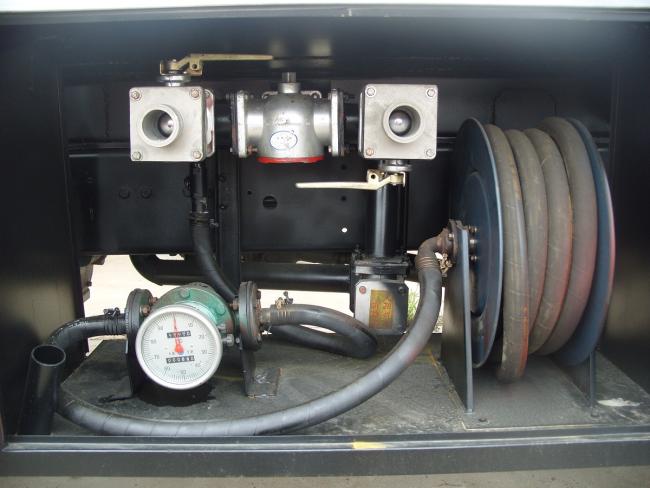

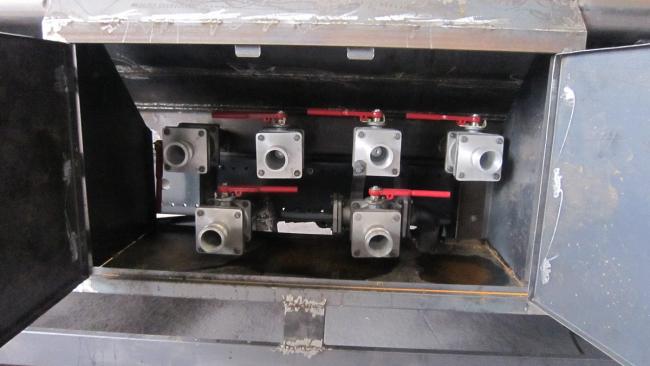

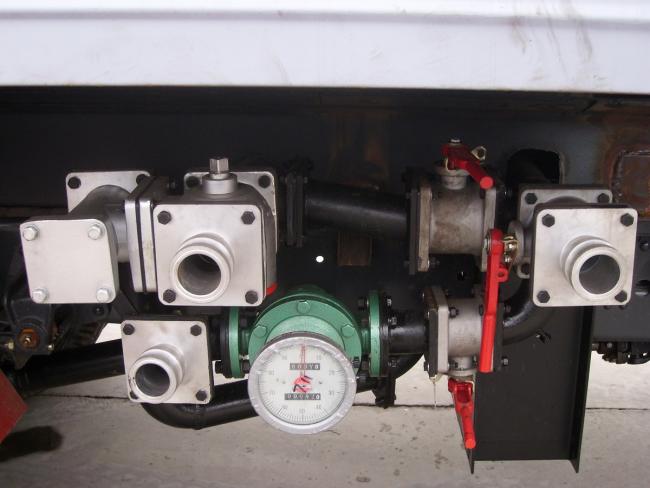

More detailed pictures for Key parts of Fuel Tank Truck, Oil Tank Truck:
| splited compartment | Customzied number | For loading different or same oil |
| Discharge valve | Customzied number | also called bottom oil loading inlet pipe |
| Pump | one unit | including pipe and mounting |

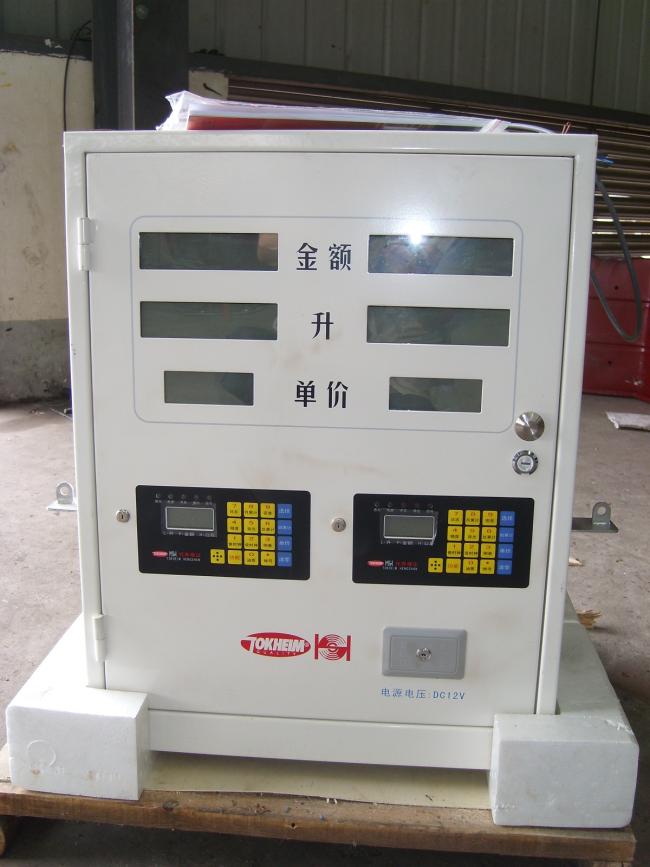

| Large flowrate refueling machine | One unit | 60~70L/min |
| Flowrate meter | One unit | Made in Hefei or Chongqing,China |
| Self-flow valve | Customzied | |
| Euro standard system | Customzied number | a whole set of bottom oil loading system(including discharge valve, oil and gas recovery device, anti-overflow probe, Euro standard manhole cover) |
Packaging: nude packaged
Transport type: Land transport, train transport, ship transport according to detail situation.
Ship type: ro/ro ship, bulk ship, container ship(20GP/40GP/40HQ/40OT,etc)
Marine shipping time: 15 days~45 days according to different shiping rounte/route.
*Remark: for details about packaging and shipping, please confirm before placing an order.
