China Steel Test Pin Test Finger Probe With Nylon Handle As Per BS1363-1 Figure 1 for sale

Steel Test Pin Test Finger Probe With Nylon Handle As Per BS1363-1 Figure 1

Price Negotiable
Price: Negotiation
MOQ: 1 set
Delivery Time: 7 working days
Brand: PEGO Group
Product Description

Steel Test Pin with Nylon Handle as Per BS1363-1 Figure 1



1. Introduction

The test pin meets the requirements of BS1363-1 clause 12.6.1 and figure 1.The test pin meets the requirements of BS1363-1 clause 12.6.1 and figure 1.



2. Parameters

Pin diameter 0.95-1.00mm
Diameter of insulating material 7.95-8.00mm
Pin length 19.95-20.00mm
Handle diameter 19.95-20.00mm
Handle length 49-51mm
Diameter of insulating material 7.95-8.00mm
Length of insulating material 29.8-30.2mm

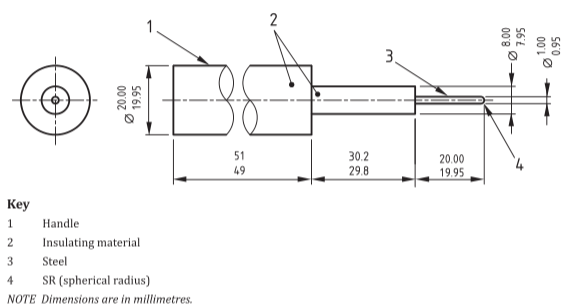

3. Figure
