China Stainless Steel Calibration Device As Per IEC60068-2-75 Annex B And Figure B.1 for sale

Stainless Steel Calibration Device As Per IEC60068-2-75 Annex B And Figure B.1

Price Negotiable
Price: Negotiation
MOQ: 1 set
Delivery Time: 15 working days
Brand: PEGO Electronics
Product Description

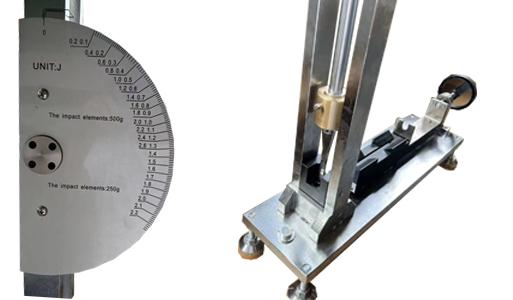

Spring Hammer Calibration Device as per IEC60068-2-75 Annex B and figure B.1



1. Introdcution

The calibration device is designed according to GB2423.44 Annex A, GB2423.55 Annex B, IEC60068-2-63 and IEC60068-2-75 standard Annex B. It’s applied to check the impact energy accuracy of spring hammer less than 2J.



2. Parameters:

Accuracy 0.01J
Repeated Accuracy ±0.01J
Max measuring range 0-2J
Outer diameter of guide groove 51mm
Energy loss of pendulum rod <0.002J
Trigger stroke >30mm

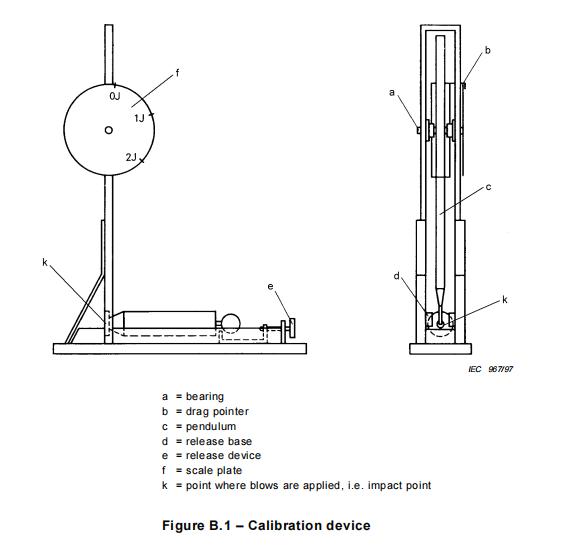

3. Figures
