EN30-1-1 Standard Aluminum Sauce Pans With Lids For Testing On Gas Burners

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: 7-15 working days

Brand: PEGO Electronics

Product Description

EN30-1-1 Standard Aluminum Sauce Pans with Lids for Testing on Gas Burners

1. Introduction

The Standard aluminum Sauce pans are designed according to EN30-1-1 Annex C.1 and table C.1. The test pans are made of commercial quality aluminum with density of 2700kg/m², and use a tightening joint to secure the mercury thermometer with a through hole φ6.5mm.

2. Parameter

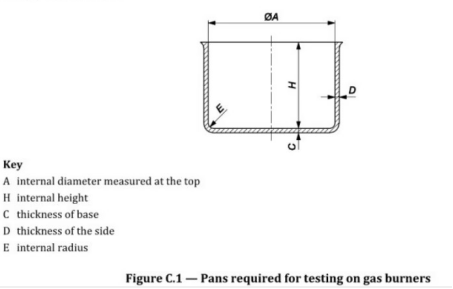

2. Table C.1-Characteristics of pans necessary for testing on gas burners

Dimension	Unit	Pan Designation															Tolerances
Dimension	Unit	6	8	10	12	14	16	18	20	22	24	26	28	30	32	34
A	mm	60	80	100	120	140	160	180	200	220	240	260	280	300	320	340	±1%
H	mm	60	70	80	90	100	110	120	130	140	150	160	170	180	190	200	±1%
C_min.	mm	1.2	1.4	1.4	1.6	1.6	1.8	2	2	2	2	2.5	2.5	2.5	2.5	2.5
D_min.	mm	1.1	1.3	1.3	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.8	1.8	1.8	1.8	1.8
E	mm	1	1.5	1.5	2	2	2.5	2.5	2.5	3	3.5	3.5	3.5	3.5	3.5	4	+0.5mm 0
Area of base	cm²	28.3	50.3	78.5	113	154	201	254	314	380	452	531	615	707	804	907
Mass	g	42.9	82.4	120	220	270	340	440	540	680	800	965	1130	1350	1520	1800	±5%
Mass pf lid^a	g				58	70	86	105	125	149	177	208	290	323	360	402
^a Mass without handles calculated for lids in aluminium (relative density 2700kg/m³) and given for guidance.
