IEC60601-1 30mm Circular Plane for Push Test to External Enclosure of ME Appliance

IEC60601-1 30mm Circular Plane for Push Test to External Enclosure of ME Appliance

1. Introduction

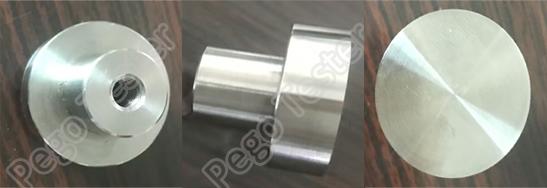

The 30mm circular plane is designed to meet the test requirements of IEC60950 clause 4.2.4 and IEC60601-1 clause 15.3.2. It’s made of stainless steel. The circular plane has a 30mm diameter surface and with M6 connector, so that to work with a foce gauge to apply a 250N±10N steady force to external enclosure of equipment having a mass of not more than 18KG.

2. Specification

3. Frequently asked questions

1). How to apply the required force?

Pego: The circular plane should work with a force gauge to apply the force.

2). Does the circular plane provide the connector to connect with force gauge?

Pego: Yes, The back of the circular plane provides an M6 interface.
