AS/NZS 5263.0 Aluminum Standard Test Vessels for Testing Hotplate Burners and Gas Burners
Price:
Negotiation
MOQ:
1 set
Delivery Time:
15 business days
Brand:
Pego Electronics
Product Description
AS/NZS 5263.0 Aluminum Standard Test Vessels for Testing Hotplate Burners and Gas Burners
1. Introduction
The standard test vessels are designed according to AS/NZS 5263.0 figure A12, each vessel can come with a lid, stirrer and thermocouple well, which are designed according to AN/NZS 5263.1.1 figure AA.104. The vessels, lid, stirrer and thermocouple well are made of commercial quality aluminum. The thermocouple is fixed with tightening joint.
2. Specification
| Burner | Vessel | Stirrer | ||||
| Gas comsumption MJ/h |
Diameter mm |
Height mm |
Length mm |
OD mm |
Wall thickness mm |
Aluminium flat plate mm (weld connection) |
| 0-6 | 160 | 110 | 250 | φ12 | 1 | L100*W50*THK2 |
| >6 and ≤9 | 195 | 140 | 250 | φ12 | 1 | L100*W50*THK2 |
| >9 and ≤12 | 230 | 155 | 250 | φ12 | 1 | L100*W50*THK2 |
| >12 and ≤17 | 270 | 160 | 250 | φ12 | 1 | L100*W50*THK2 |
| >17 and ≤24 | 315 | 190 | 250 | φ12 | 1 | L100*W50*THK2 |

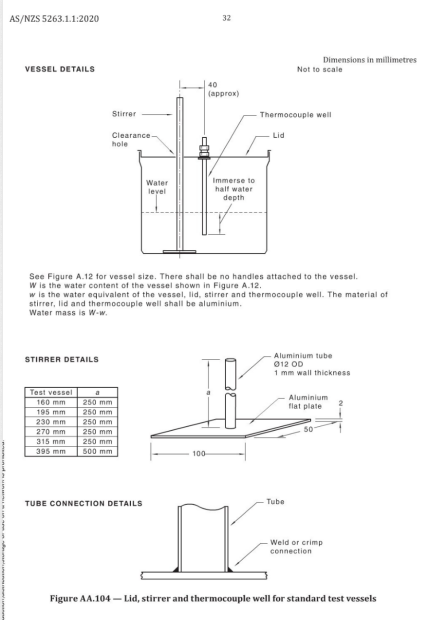

3.Sirrer and thermocouple well figures (from AN/NZS 5263.1.1)
