IEC60529 Clause 14.2.7 IPX7 Water Tank Ingress Protection Testing Machine
IEC60529 Clause 14.2.7 IPX7 Water Tank Ingress Protection Testing Machine
1. Introduction
The IPX7 Water Tank Ingress Protection Testing Machine is designed and manufactured according to IEC60529 clause 14.2.7 and IEC60598-1, and is suitable for waterproof testing of outdoor electrical and electronic products and lighting products under water, and for waterproof testing of products by certification and testing agencies and manufacturers. The ipx7 water tank tester is made of stainless steel to make sure rustless for long time use, the waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect. The water-level on enclosure requires 0.15m above top and 1m above bottom, duration of the test is 30min.
2. Standard

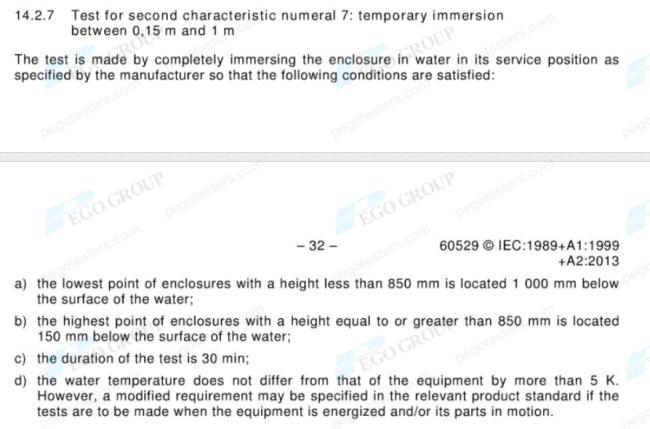

IEC60529 Degrees of protection provided by enclosures (IP Code) clause 14.2.7
IEC60598-1 Luminaires - Part 1: General requirements and tests
3. Parameters
| Model | IPX7B-300 | IPX7B-600 | IPX7B-800 | IPX7B-1000 | IPX7B-1200 |
| Inner size (mm) | 300*300*1200 | 600*600*1200 | 1000*1000*1200 | 1000*1000*1200 | 1200*1200*1200 |
| Outer size (mm) | 360*360*1300 | 660*660*1300 | 860*860*1300 | 1080*1080*1300 | 1280*1280*1300 |
| Highest water level (m) | 1.2 | ||||
| Water level adjust way | Manual adjustment | ||||
| Water level display | Stainless steel rule (accuracy: 1mm) | ||||
| Material | Stainless steel | ||||
4. Figure
