IEC61010-1 Clause 6.2.1 Annex B Figure B.1 Rigid Finger Probe

1. Introduction

Test probe 11, commonly known as the Rigid Test Finger, is designed according to IEC61032, GB/T 16842 Figure 7, IEC60335-1 clause 22.11, EN50075 clause 8.1, IEC61010-1 clause 6.2.2 and Figure B.1, IEC60884-1 clause 10.1, AS/NZS3112 clause 3.14.12.4 and Appendix K3 requirements. It is used to test the protection of human body from touching dangerous parts, and can also be used to test the mechanical strength of the holes of the housing or the internal baffles of the housing. 0-50N and 0-75N thrust can be added, which is more convenient for tests that require force application during testing.

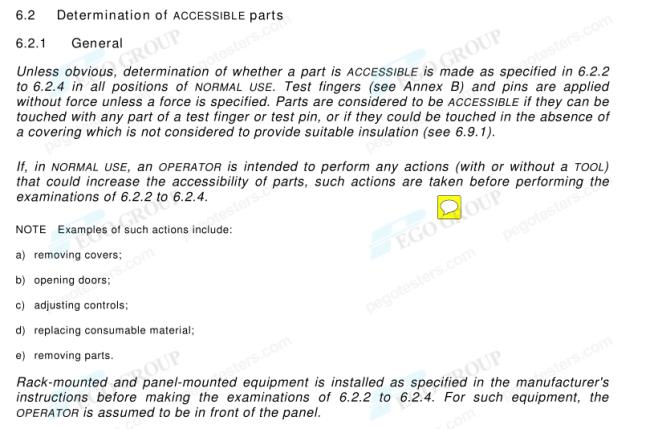

2. Standard

IEC61032 Protection of persons and equipment by enclosures - Probes for verification Figure 7

IEC60335-1 Household and similar electrical appliances - Safety - Part 1: General requirements Clause 22.11

EN50075 Flat non-wirable two-pole plugs, 2,5A 250V, with cord, for the connection of class II-equipment for household and similar purposes Clause 8.1

IEC61010-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance Clause 6.2.2 and Figure B.1

IEC60884-1 Plugs and socket-outlets for household and similar purposes –Part 1: General requirements Clause 10.1, 75N

AS/NZS3112 Approval and test specification - Plugs and socket-outlets Clause 3.14.12.4 and Annex K3,50N

3. Parameters

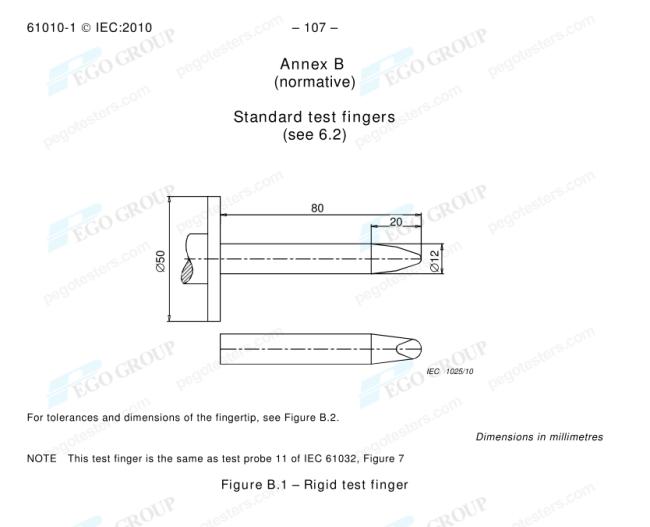

4. Figure
