30KV Output Voltage ESD Simulator IEC61000-4-2 Compliant for Air and Contact Discharge EMC Testing
Price:
USD3800-USD5000/set
MOQ:
1set
Delivery Time:
15 working days
Brand:
PEGO
Product Description
30KV Output Voltage ESD Simulator IEC61000-4-2 Compliant for Air and Contact Discharge EMC Testing
Product Overview
This Air and Contact Electrostatic Discharge (ESD) Simulator up to 30KV is a comprehensive EMC test system designed to meet IEC61000-4-2 and GB/T17626.2 standards. The ESD generator evaluates the ability of electrical and electronic equipment to withstand electrostatic discharge performance, making it ideal for industrial control equipment, household appliances, chemical electronics, communication electronics, components, and automotive control equipment.
Key Features
- Air discharge maintains voltage for over 5 seconds with excellent repeatability, unaffected by air humidity
- Built-in IEC standard voltage with auto-trigger and user-defined functions
- Comprehensive safety protection including HV protection, over current protection, and short circuit protection
- Supports both contact discharge and air discharge test methods
- Test voltage range from 0.1KV to 30KV with user-selectable test grades
Technical Specifications
| Parameter | ESD-2005 Specifications |
|---|---|
| Output Voltage | 0.5～30kV±5％ |
| Polarity | Positive, negative |
| Triggering Mode | SINGLE (single), COUNT (set number), 20pps (20 times/second), * (host self-trigger, voltage auto-evolving scan) |
| Discharge Mode | Air discharge, contact discharge |
| Discharge Interval | 0.1～9.9s (0.05s@ 20pps mode) |
| Counter | 0～999 (Discharge count) |
| Resistor Kit | 150pF±10%, 330Ω±10% |
| Discharge Electrodes | Conical contact discharge electrode and spherical air discharge electrode |
| Air Discharge Voltage Keep Time | More than 5s |
| Working Environment | Ambient temperature: 10℃～35℃, humidity: 30％～60％ |
| Power | Single AC85～265V, 50／60Hz |
| Dimensions & Weight | 250×210×130mm (D×W×H) / 4kg |

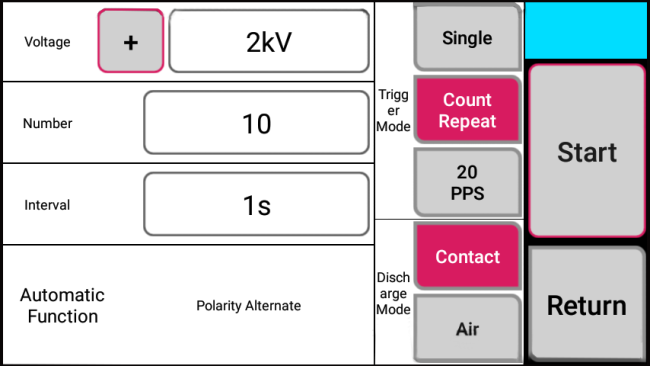

Operation Interface
Frequently Asked Questions
What is the warranty period of the equipment?
The equipment warranty is 12 months upon receipt of the equipment.
Can you provide third-lab calibration certificate?
Yes, the equipment can be sent to ISO17025 authorized third-party labs for calibration certificate, with charges to be covered by the buyer.
Does this equipment have English operation interface?
Yes, the operation interface includes English instructions.
Your power plug cannot be used in our country, can you change it for us?
Yes, we will modify the power plug to fit your requirements. Please specify this need when placing your order.
