IEC60851-3 Enamelled Round Wire Abrasion Resistance Test Apparatus
IEC60851-3 Enamelled Round Wire Abrasion Resistance Test Apparatus
1. Introduction
The enamelled round wire abrasion resistance test apparatus is designed according to IEC60851-3 clause 7 figure 1 and figure 2 and GB/T4074.3 clause 5.2. It’s used to test the abrasion resistance of the enamel film on round enameled wires with a nominal conductor diameter over 0.250 mm.
Principle:

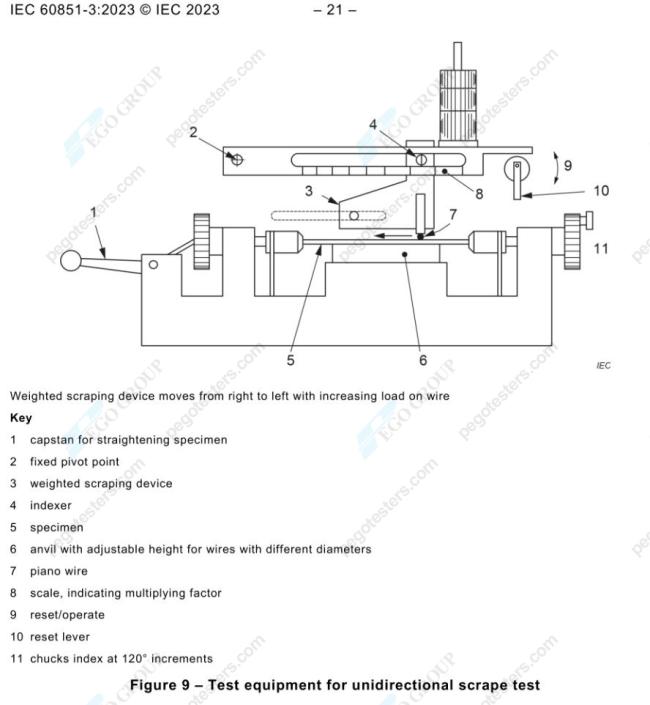

A straight piece of wire is subjected to a unidirectional scrape test, by a needle to which a progressively increasing load is applied and which scrapes along the wire surface. The load that causes an electrical contact of the needle with the conductor is called the load-to-failure.
2. Specification
|
Moveable distance of scraping device |
>100mm |
|
Scrape speed of scraping device |
(400±40)mm/min |
|
Scraper diameter |
(0.23±0.01)mm |
|
Sample rotation way |
Automatically |
|
Test voltage |
DC (6.5±0.5)V |
|
Short-circuit current |
(20±0.5)mA |
|
Scratch resistance error |
<±5% |
|
Weight |
5N*3, 2N*2, 1N*1, 0.5N*1, 0.2N*2, 0.1N*1 |
|
Power supply |
AC 220V±10%, 50Hz |
|
Power consumption |
<150W |
|
Operating environment |
Temperature: 0-40℃, relative humidity: ≤85% |
|
Dimension and weight |
L600*W350*375mm/35KG |
