1.2 / 50 μS EMC Test Equipment High Voltage Surge Generator 50 / 60 Hz
IEC60335 EMC Test Equipment 12KV 1.2 / 50μs High Voltage Surge Generator
1. Product information
The impulse voltage generator has a no-load wave shape corresponding to the 1.2/50ms standard impulse specified in IEC 61180-1.
This generator is in line with the requirements of IEC 60335 and IEC60950 standard, which can be used to detect the transient over voltage of the components and the electrical clearance and the creepage distance.
2. Features
1) 7 inch LCD touch screen with multifunction, easy to operation and update software
2) Built in over-voltage, over-current, short circuit protection
3) Voltage error and no output warning
4) Chinese and English software available
3. Technical Parameters:
| Open output voltage | 12KV (max)±5% |
| Frontier time | 1.2μs ±30% |
| Half-value time | 50μs ±20% |
| Output polarity | positive, negative, positive/negative automatically |
| Output impedance (optional) | 2Ω,500Ω±10% |
| Times | 1~9999 times |
| Surge interval | 3~999s |
| Working environment | 15℃~35℃ (temperature), 10%~75% (humidity) |
| Working power | 220V±10% AC, 50/60Hz |
| Dimension | 470mm*260mm*500mm (W*H*D) |
| Weight | 35KG |
4. Principle and waveform
1) 1.2/50ms surge waveform (generator section) equivalent circuit

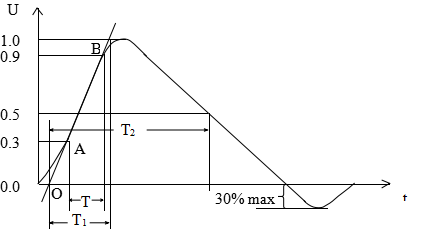

2) Open voltage waveform
Frontier time: T1=1.67T=1.2ms±30%
Half-value time: T2=50ms±20%
