Nylon Material Iec 61032 Test Probe Against Access To Hazardous Mechanical Parts

Price Negotiable

Price: USD450-600/set

MOQ: 1set

Delivery Time: 15 working days

Brand: PEGO

Product Description

IEC61032 Test Probe 31 Test Cone Made by Nylon Third - Lab Calibration Certificate Available

Introduction:

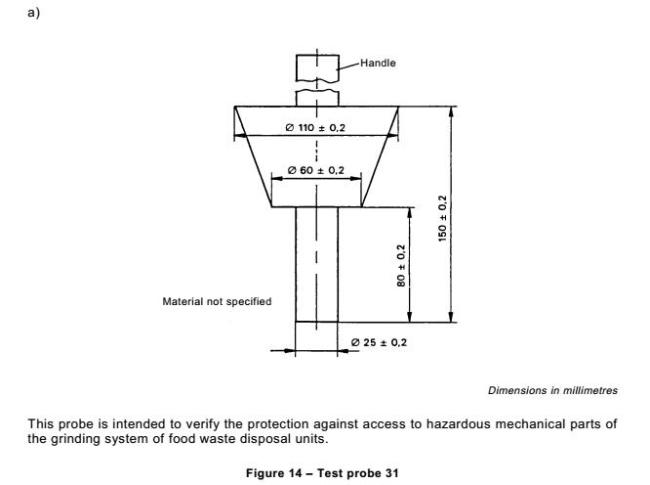

It is designed according to IEC61032 figure 14, this probe is intended to verify the protection against access to hazardous mechanical parts of the grinding system of food waste disposal units.

Specification:

diameter of probe	25mm
Length of probe	80mm
Diameter of front baffle	60mm
Diameter of bottom baffle	110mm
Total length of probe and baffle	150mm
Material	nylon

Picture:

Probe List:

Probes and application	Probe code	Short description	Force to be applied
Access probes of IEC60529 (IP code)	Probe A	Sphere:Φ50 with handle	50
	Probe B	Jointed test finger	10
	Probe C	Rod: Φ2.5-length 100	3
	Probe D	Wire: Φ1.0-length 100	1
Object probes of IEC60529 (IP code)	Probe 1	Sphere: Φ50	50
Object probes of IEC60529 (IP code)	Probe 2	Sphere: Φ12.5	30
Other access probes Persons against access to hazardous live parts or hazardous mechanical parts	Probe 11	Unjointed test finger	50
	Probe 12	Cylindrical pin: Φ4-length 50
	Probe 13	Conincal pin: Φ3 to 4-length 15
	Probe 14	Bar: 3*1	20
	Probe 15	Deleted
	Probe 16	Deleted
	Probe 17	Wire: Φ0.5
	Probe 18	Small finger probe: Φ8.6-length 57.9	10
	Probe 19	Small finger probe: Φ5.6-length 44	10
Other access probes Persons against access to hazardous mechanical parts	Probe 31	Cone: Φ110/60	50
	Probe 32	Rod: Φ 25	30
	Probe 33	Delected
Other access probes Persons against access to hot or glowing parts	Probe 41	Probe: Φ 30
	Probe 42	Deleted
	Probe 43	Bar: 50*5
