China UL507 UL1278 Test Finger Probe 1 / 8 Inch Head Radius Apply To Fan Blades for sale

UL507 UL1278 Test Finger Probe 1 / 8 Inch Head Radius Apply To Fan Blades

Price Negotiable
Price: USD600-800/set
MOQ: 1set
Delivery Time: 15 working days
Brand: PEGO
Product Description

PA160B UL Test Finger Probe Hazardous Moving Parts Probe for Fan Blades



Introduction

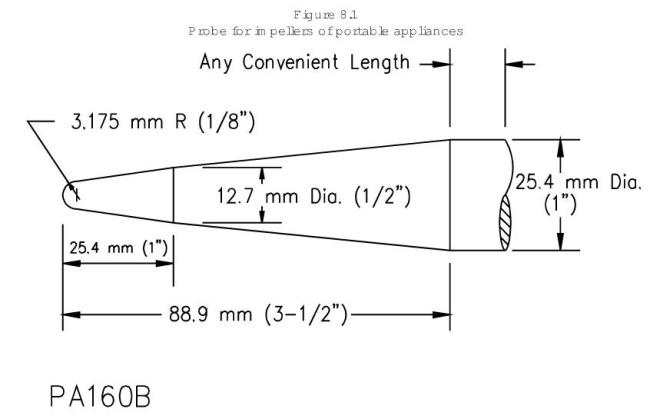

Hazardous moving part probe is conforms to the standards of UL507 figure 8.1 (PA160B), UL1278 figure 9.1 (PA160). It is applied to test the accessibility to hazardous moving parts such as access to fan blades through a fan finger guard. The handle is made of nylon, the finger is made by stainless steel.



Specification

Rigid finger length 88.9mm (3.5 inch)
Head length 25.4mm (1 inch)
Head radius R3.175mm (1/8 inch)
Head former diameter 12.7mm (1/2 inch)
Tail diameter 25.4mm (1 inch)
Standard UL507, UL1278
