IEC60432-1 Holder Torque Gauge Special Steel For Torsion Resistance Testing
Price:
USD230-USD800/piece
MOQ:
1 piece
Delivery Time:
15 working days
Brand:
PEGO
Product Description
IEC60432-1 E12 / E14 / E17 / E26 / E27 Holder Torque Gauge for Torsion Resistance Testing
1. Introduction

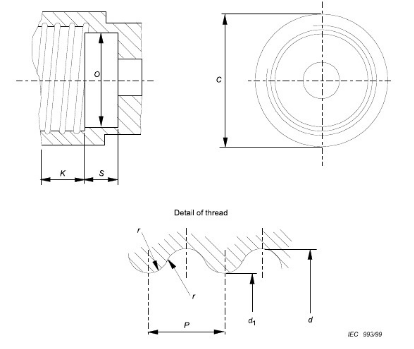

Meet the requirements of IEC60432-1 figure C.2 and IEC60560-2 figure 3.
2. Specification:
| Dimension | E12 | E14 | E17 | E26 and E26d | E27 | Tolerance |
| C | 15.27 | 20.0 | 20.0 | 32.0 | 32.0 | Min. |
| K | 9.0 | 11.5 | 10.0 | 11.0 | 13.5 |
0.0 -0.3 |
| O | 9.5 | 12.0 | 14.0 | 23.0 | 23.0 |
+0.1 -0.1 |
| S | 4.0 | 7.0 | 8.0 | 12.0 | 12.0 | Min. |
| d | 11.89 | 13.89 | 16.64 | 26.492 | 26.45 |
-0.1 0.0 |
| d1 | 10.62 | 12.29 | 15.27 | 24.816 | 24.26 |
+0.1 0.0 |
| p | 2.540 | 2.822 | 2.822 | 3.629 | 3.629 | - |
| r | 0.792 | 0.822 | 0.897 | 1.191 | 1.025 | - |
Note: We accept customized gauges, please just send us the figure number on the inquiry, all the gagues can pass the third-lab calibration and get the ceritificates autorized by CNAS (IS017025).
